K121F CVT  VALVE BODY ASSEMBLY  INSPECTION


PROCEDURE

Hide 35410J 1.INSPECT TRANSMISSION VALVE BODY ASSEMBLY

a.

Inspect Shift Solenoid Valve SLG:

i.

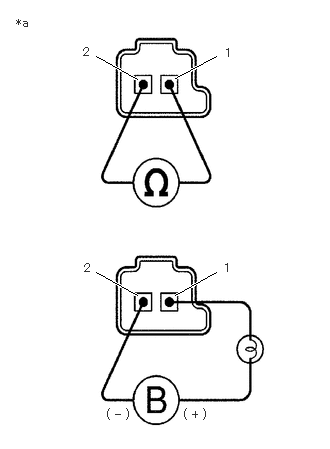

C201747C20
1,0.583 1.427,0.823 true 1,2.833 1.427,3.073 true 1.823,0.813 2.25,0.583 true 1.823,3.073 2.25,2.833 true 0.865,0.469 1.021,0.667 0.156,0.198 10 false 2 2.344,0.479 2.573,0.677 0.229,0.198 10 false 1 1.115,4.25 1.531,4.5 0.417,0.25 10 false ( - ) 1.917,4.25 2.323,4.5 0.406,0.25 10 false ( + ) 0.875,2.719 1.052,2.917 0.177,0.198 10 false 2 2.333,2.719 2.51,2.917 0.177,0.198 10 false 1 0.167,0.167 0.5,0.5 0.333,0.333 10 false *a
*a Component without harness connected
(Shift Solenoid Valve SLG)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 20°C (68°F) 5.0 to 5.6 Ω


If the result is not as specified, replace the transmission valve body assembly.


ii.

Connect a positive (+) lead from the battery with a 21 W bulb to terminal 1 and a negative (-) lead to terminal 2 of the shift solenoid valve SLG connector, and check that the shift solenoid valve SLG moves and makes an operating sound.

NOTICE:

When using battery voltage during the inspection, do not bring the positive (+) and negative (-) tester probes too close to each other as a short circuit may occur.


OK:

The shift solenoid valve SLG moves and makes an operating sound.


If the result is not as specified, replace the transmission valve body assembly.



b.

Inspect Shift Solenoid Valve SL1:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.



c.

Inspect Shift Solenoid Valve SL2:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.



d.

Inspect Shift Solenoid Valve SLU:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.



e.

Inspect Shift Solenoid Valve SLP:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.



f.

Inspect Shift Solenoid Valve SLS:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.
