K121F CVT  TRANSMISSION WIRE  INSTALLATION


PROCEDURE

Hide 82125M 1.INSTALL TRANSMISSION WIRE

a.
C399161

Coat the O-ring of the transmission wire with Toyota Genuine CVT fluid FE.

NOTICE:

If reusing the transmission wire, check that the O-ring is not damaged.



b.

Coat a new O-ring with Toyota Genuine CVT fluid FE and install it to the temperature sensor.

NOTICE:

Ensure that the O-ring is not twisted.



c.

Install the transmission wire to the transaxle case sub-assembly with the bolt.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


d.

Connect the transmission revolution sensor (NC1) connector.


e.
C401423C02
1.26,0.917 1.417,1.115 0.156,0.198 10 false -
V113147

Install in this Direction

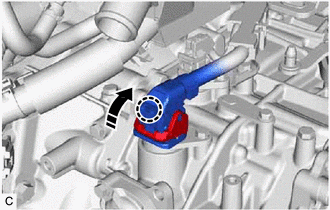

Connect the transmission wire connector and rotate the lever and attach the claw.

HINT:

Rotate the lever until the claw of the transmission wire connector makes a click sound.
