K121F CVT  SHIFT LEVER KNOB  INSTALLATION


PROCEDURE

Hide 33504F 1.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

a.

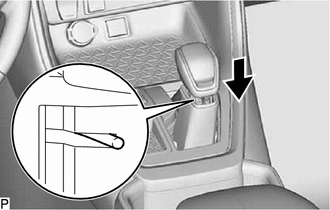

C402729

Install the shift lever knob sub-assembly to the transmission floor shift assembly.


b.

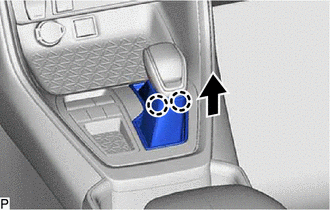

C402731

Engage the 2 claws to connect the shifting hole cover sub-assembly as shown in the illustration.

NOTICE:

Make sure that the shifting hole cover sub-assembly does not twist after installing the shift lever knob sub-assembly.
