RM36D0EC _52 Drivetrain _138817 K121F CVT _0584988 SHIFT LEVER POSITION SENSOR A

K121F CVT  SHIFT LEVER POSITION SENSOR  INSTALLATION


PROCEDURE

Hide 84540 1.INSTALL SHIFT LEVER POSITION SENSOR

a.

Temporarily install the shift lever position sensor to the transaxle case sub-assembly with the 2 bolts.


b.
C400913

Temporarily install the transmission control shaft lever to the manual valve lever shaft.


c.
C420965C01
0.49,1.448 0.708,1.656 0.219,0.208 10 true *a
*a N


Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.

NOTICE:

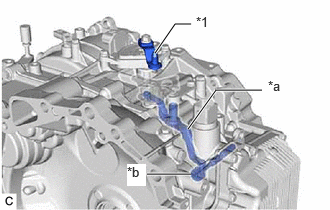

C416210C01
1.615,0.552 1.823,0.25 1.823,0.25 1.99,0.25 true 1.958,1.344 2.25,0.938 2.25,0.938 2.729,0.938 true 1.531,1.813 1.99,1.813 true 2.042,0.146 2.323,0.385 0.281,0.24 10 false *1 2.792,0.813 3.073,1.052 0.281,0.24 10 false *a 1.323,1.708 1.521,1.938 0.198,0.229 10 true *b
*1 Transmission Control Shaft Lever
*a Manual Valve Link Lever Sub-assembly
*b Manual Valve


If the transmission control shaft lever is turned counterclockwise more than necessary, manual valve link lever sub-assembly may separate from the manual valve.



d.

Remove the transmission control shaft lever from the manual valve lever shaft.


e.
C400915C03
2.552,0.604 2.969,0.365 2.969,0.365 2.563,0.438 true 2.99,0.281 3.24,0.542 0.25,0.26 10 false *a
*a Protrusion


Align the protrusions of the shift lever position sensor as shown in the illustration.


f.

Hold the shift lever position sensor in that position and tighten the 2 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


g.

Install the transmission control shaft lever to the manual valve lever shaft with the washer and nut.

Torque:
12.7 N*m (130 kgf*cm, 9 ft.*lbf)

NOTICE:

Be careful of the direction of the transmission control shaft lever.



h.

Connect the shift lever position sensor connector.


Hide 33820B 2.CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

NOTICE:

Before connecting the transmission control cable assembly, check that the shift lever is in N.


a.
C420965C01
0.49,1.448 0.708,1.656 0.219,0.208 10 true *a
*a N


Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.

NOTICE:
C416210C01
1.615,0.552 1.823,0.25 1.823,0.25 1.99,0.25 true 1.958,1.344 2.25,0.938 2.25,0.938 2.729,0.938 true 1.531,1.813 1.99,1.813 true 2.042,0.146 2.323,0.385 0.281,0.24 10 false *1 2.792,0.813 3.073,1.052 0.281,0.24 10 false *a 1.323,1.708 1.521,1.938 0.198,0.229 10 true *b
*1 Transmission Control Shaft Lever
*a Manual Valve Link Lever Sub-assembly
*b Manual Valve


If the transmission control shaft lever is turned counterclockwise more than necessary, manual valve link lever sub-assembly may separate from the manual valve.



b.

Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.


c.
C400908C02
0.51,2.073 0.823,2.229 0.313,0.156 10 false *a 1.948,2.083 2.26,2.24 0.313,0.156 10 false *b
*a Correct
*b Incorrect


Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.
