GF1A TRANSFER / 4WD / AWD  TRANSFER ASSEMBLY  INSTALLATION

0.833,4.25 0.833,4.031 true 0.333,4.281 0.333,4.063 true 0.708,4.281 1.167,4.479 0.458,0.198 10 false SST 2.01,4.271 2.323,4.427 0.313,0.156 10 false *b 0.271,4.344 0.583,4.5 0.313,0.156 10 false *a

*a	Union Nut Wrench
*b	Torque Wrench Fulcrum Length

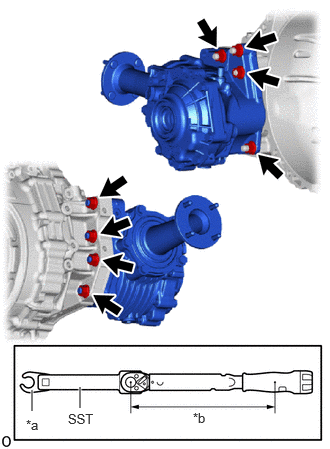

Using SST and union nut wrench, install the transfer assembly to the transaxle with the 8 nuts.

Torque:

Specified tightening torque : 68.6 N*m (700 kgf*cm, 51 ft.*lbf)

SST

09961-00950

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201910,999999,_V1,_083040,_0402303,RM100000001JHCH,

·

When using a union nut wrench (fulcrum length of 30 mm (1.181 in.)) + SST (fulcrum length of 150 mm (5.906 in.)) + torque wrench (fulcrum length of 255 mm (10.039 in.)): 40.2 N*m (410 kgf*cm, 30 ft.*lbf)

Install the No. 1 propeller shaft heat insulator bracket sub-assembly with the 2 bolts.

Torque:

25 N*m (255 kgf*cm, 18 ft.*lbf)
