K121 CVT CONTINUOUSLY VARIABLE TRANSAXLE UNIT DISASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:: ·

Clean the work area, tools to be used, other equipment, etc., thoroughly before performing this procedure, as there is a possibility that a CVT malfunction, which may prevent the vehicle from being driven, may occur if dust or fine foreign matter enters the CVT.

·

Do not use cotton work gloves, cloths, paper towels, etc., that may produce lint, dust or foreign matter.

·

When cleaning parts, make sure that dust or foreign matter does not enter the CVT.

·

When replacing any tapered roller bearing (inner race) or tapered roller bearing (outer race), replace both the tapered roller bearing (inner race) and tapered roller bearing (outer race) with new ones.

·

When the tapered roller bearing (inner race) is removed, the tapered roller bearing (inner race) and tapered roller bearing (outer race) need to be replaced.

·

When the tapered roller bearing (inner race) is not removed, the tapered roller bearing (inner race) and tapered roller bearing (outer race) can be reused.

HINT:: Shift shock may increase after replacing the transmission valve body assembly or forward multiple disc clutch assembly. In this case, shift shock will reduce as the vehicle in driven.

PROCEDURE

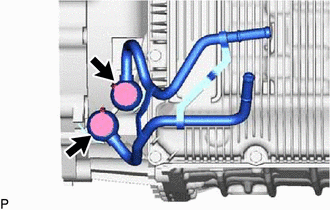

Hide Display 32901L 1.REMOVE OIL COOLER ELBOW SUB-ASSEMBLY

Remove the 2 bolts and oil cooler elbow sub-assembly from the continuously variable transaxle assembly.

Remove the 2 gaskets from the oil cooler elbow sub-assembly.

Hide Display 84540 2.REMOVE SHIFT LEVER POSITION SENSOR

Click hereDrivetrain>K121 (CVT)>SHIFT LEVER POSITION SENSOR>REMOVAL202304,202405,_52,_138176,_0579404,RM1000000029EN4_02_0018,202405,202409,_52,_138176,_0579404,RM100000002LVKI_02_0018,202409,999999,_52,_138176,_0579404,RM100000002NGJ8_02_0018,

Hide Display 89419B 3.REMOVE SHIFT STROKE SENSOR

Click hereDrivetrain>K121 (CVT)>SHIFT STROKE SENSOR>REMOVAL202304,202405,_52,_138176,_0579403,RM1000000029EMV_02_0001,202405,202409,_52,_138176,_0579403,RM100000002LVKG_02_0001,202409,999999,_52,_138176,_0579403,RM100000002NGJ7_02_0001,

Hide Display 89413M 4.REMOVE TRANSMISSION REVOLUTION SENSOR (NOUT)

Click hereDrivetrain>K121 (CVT)>REVOLUTION SENSOR (NOUT SENSOR)>REMOVAL202304,202405,_52,_138176,_0579399,RM1000000029EIH_01_0002,202405,202409,_52,_138176,_0579399,RM100000002LVK4_01_0002,202409,999999,_52,_138176,_0579399,RM100000002NGJ3_01_0002,

Hide Display 89413N 5.REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

Click hereDrivetrain>K121 (CVT)>REVOLUTION SENSOR (NT SENSOR)>REMOVAL202304,999999,_52,_138176,_0579398,RM1000000029EHQ_01_0007,

Hide Display 89413T 6.REMOVE TRANSMISSION REVOLUTION SENSOR (NSS)

Click hereDrivetrain>K121 (CVT)>REVOLUTION SENSOR (NSS SENSOR)>REMOVAL202304,202405,_52,_138176,_0579401,RM1000000029EMI_01_0006,202405,202409,_52,_138176,_0579401,RM100000002LVKD_01_0006,202409,999999,_52,_138176,_0579401,RM100000002NGJ5_01_0006,

Hide Display 89637K 7.REMOVE OIL PRESSURE SENSOR

Click hereDrivetrain>K121 (CVT)>OIL PRESSURE SENSOR>REMOVAL202304,999999,_52,_138176,_0579402,RM1000000029EMM_02_0003,

Hide Display 8.REMOVE REFILL PLUG

Remove the refill plug and gasket from the rear transaxle case sub-assembly.

Hide Display 30400 9.SUPPORT CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY

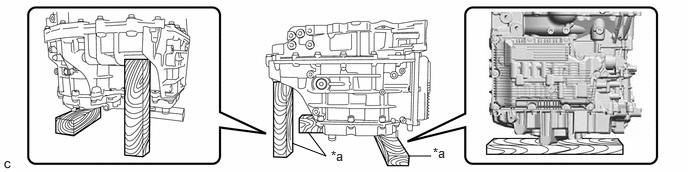

Place the continuously variable transaxle assembly on wooden blocks.

3.042,1.49 3.396,1.625 3.396,1.625 3.208,1.375 false 4.25,1.625 4.49,1.625 false 3.448,1.542 3.719,1.76 0.271,0.219 10 false *a 4.51,1.51 4.781,1.729 0.271,0.219 10 false *a

Wooden Block

Hide Display 10.REMOVE OVERFLOW PLUG

Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle case sub-assembly.

Hide Display 35125E 11.REMOVE OVERFLOW (CVT) TUBE

Using a 6 mm hexagon socket wrench, remove the overflow (CVT) tube from the transaxle case sub-assembly.

Hide Display 35015Y 12.REMOVE TRANSAXLE SIDE COVER SUB-ASSEMBLY

Click hereDrivetrain>K121 (CVT)>OIL PAN>REMOVAL202304,202405,_52,_138176,_0579396,RM1000000029EHJ_02_0033,202405,202409,_52,_138176,_0579396,RM100000002LVK2_02_0033,202409,999999,_52,_138176,_0579396,RM100000002NGJ1_02_0033,

Hide Display 35410J 13.REMOVE TRANSMISSION VALVE BODY ASSEMBLY

Click hereDrivetrain>K121 (CVT)>VALVE BODY ASSEMBLY>REMOVAL202304,202405,_52,_138176,_0579411,RM1000000029EOC_01_0012,202405,202409,_52,_138176,_0579411,RM100000002LVKL_01_0012,202409,999999,_52,_138176,_0579411,RM100000002NGJC_01_0012,

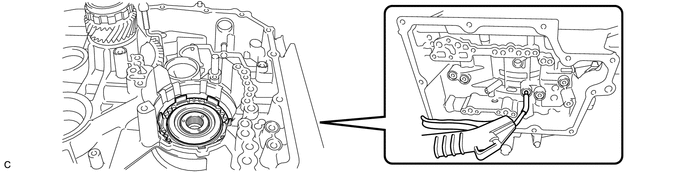

Hide Display 82125M 14.REMOVE TRANSMISSION WIRE

Click hereDrivetrain>K121 (CVT)>TRANSMISSION WIRE>REMOVAL202304,202405,_52,_138176,_0579410,RM1000000029EO9_01_0005,202405,202409,_52,_138176,_0579410,RM100000002M146_01_0005,202409,999999,_52,_138176,_0579410,RM100000002NGJB_01_0005,

Hide Display 89413S 15.REMOVE TRANSMISSION REVOLUTION SENSOR (NC1)

Click hereDrivetrain>K121 (CVT)>REVOLUTION SENSOR (NC1 SENSOR)>REMOVAL202304,202405,_52,_138176,_0579400,RM1000000029EIO_01_0021,202405,202409,_52,_138176,_0579400,RM100000002LVK7_01_0021,202409,999999,_52,_138176,_0579400,RM100000002NGJ4_01_0021,

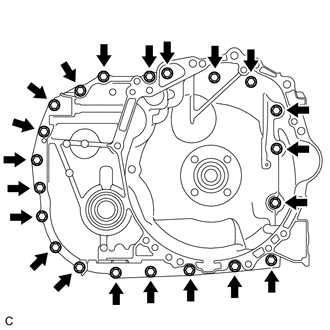

Hide Display 35111C 16.REMOVE TRANSAXLE HOUSING

Remove the 21 bolts.

Using a plastic-faced hammer, tap on the circumference of the transaxle housing to remove it from the transaxle case sub-assembly.

Remove the 5 O-rings from the transaxle case sub-assembly.

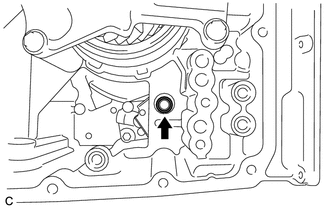

Hide Display 17.REMOVE SOLENOID OIL STRAINER

Remove the solenoid oil strainer from the transaxle case sub-assembly.

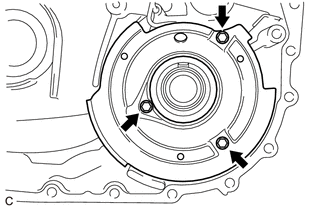

Hide Display 35174B 18.REMOVE OIL RESERVOIR LOCK PLATE

Remove the 3 bolts and oil reservoir lock plate from the transaxle housing.

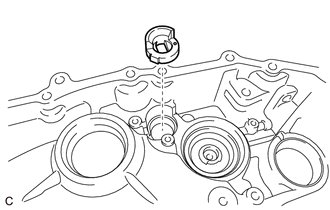

Hide Display 35394D 19.REMOVE OIL CLEANER (CVT) MAGNET

Remove the 3 oil cleaner (CVT) magnets from the oil reservoir lock plate.

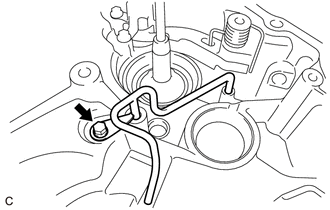

Hide Display 35882E 20.REMOVE DIFFERENTIAL GEAR LUBE APPLY TUBE

Remove the bolt and differential gear lube apply tube from the transaxle housing.

Hide Display 35896A 21.REMOVE SECONDARY SHAFT LUBE APPLY TUBE

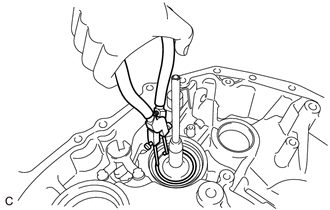

Using a snap ring plier, remove the snap ring from the transaxle housing.

Remove the secondary shaft lube apply tube from the transaxle housing.

Remove the O-ring from the secondary shaft lube apply tube.

Hide Display 35809 22.REMOVE C-2 CLUTCH PRESSURE APPLY TUBE SUB-ASSEMBLY

Remove the C-2 clutch pressure apply tube sub-assembly from the transaxle housing.

Remove the O-ring from the C-2 clutch pressure apply tube sub-assembly.

Hide Display 35593A 23.REMOVE CAM GUIDE SLEEVE

Remove the 2 bolts and cam guide sleeve from the transaxle housing.

Hide Display 35556N 24.REMOVE PARKING LOCK PAWL SHAFT

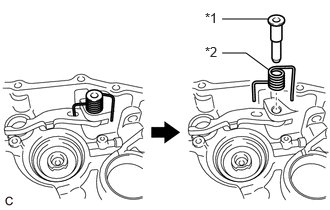

2.313,0.198 2.792,0.198 false 2.313,0.552 2.563,0.552 2.563,0.552 2.802,0.729 false 2.135,0.104 2.406,0.313 0.271,0.208 10 false *1 2.135,0.458 2.417,0.656 0.281,0.198 10 false *2

*1	Parking Lock Pawl Shaft
*2	Torsion Spring

Remove the parking lock pawl shaft and torsion spring from the transaxle housing.

Hide Display 35557C 25.REMOVE PARKING LOCK PAWL

Remove the parking lock pawl from the transaxle housing.

Hide Display 35598B 26.REMOVE PARKING LOCK SLEEVE

Remove the parking lock sleeve from the transaxle housing.

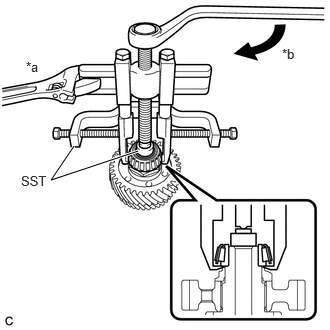

Hide Display 27.REMOVE REDUCTION DRIVEN GEAR FRONT TAPERED ROLLER BEARING (OUTER RACE)

2.438,0.885 2.771,0.885 false 2.813,0.802 3.167,1 0.354,0.198 10 false SST

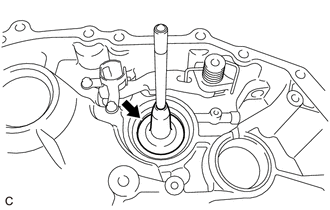

Using SST, remove the reduction driven gear front tapered roller bearing (outer race) and shim from the transaxle housing.

SST: 09308-00010

NOTICE:: Be careful not to damage the transaxle housing.

HINT:: Align the claw of SST with the indentation of the transaxle housing when removing the parts.

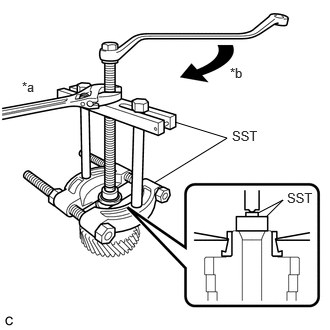

Hide Display 28.REMOVE DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE)

2.385,0.385 2.719,0.385 false 2.771,0.292 3.198,0.531 0.427,0.24 10 false SST

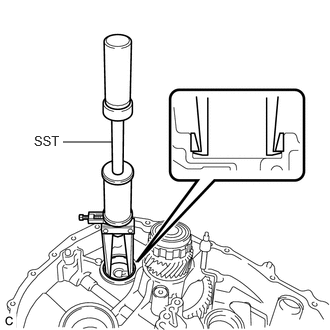

Using SST, remove the differential case front tapered roller bearing (outer race) and shim from the transaxle housing.

SST: 09308-00010

NOTICE:: Be careful not to damage the transaxle housing.

HINT:: Align the claw of SST with the indentation of the transaxle housing when removing the parts.

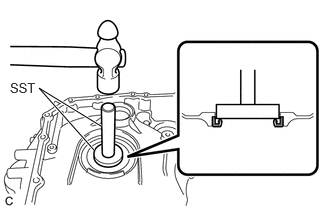

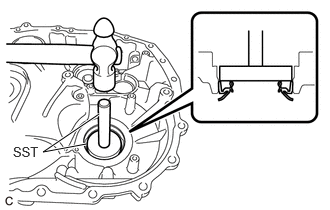

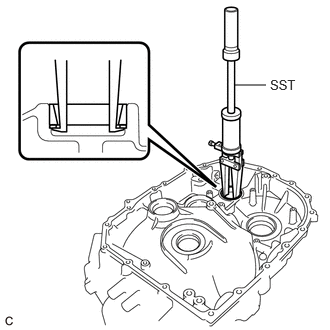

Hide Display 43410M 29.REMOVE FRONT DRIVE SHAFT OIL SEAL RH

0.896,1.5 0.448,1.583 0.448,1.583 1.031,1.188 true 0.135,1.5 0.458,1.719 0.323,0.219 10 false SST

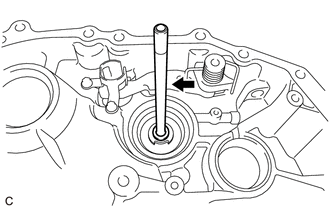

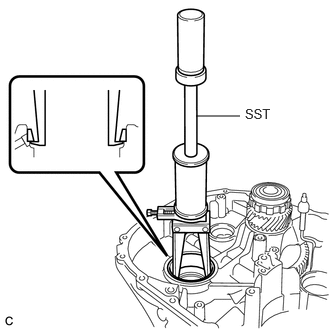

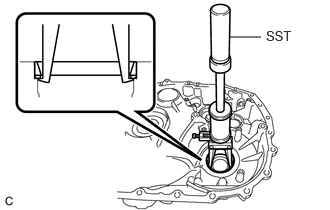

Using SST and a hammer, remove the front drive shaft oil seal RH from the transaxle housing.

SST: 09950-70010 (09951-07100)
09950-60011 (09951-00600)

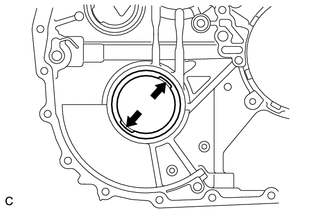

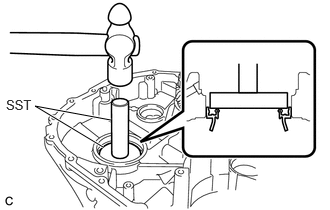

Hide Display 30.REMOVE TRANSAXLE HOUSING TYPE T OIL SEAL

0.979,1.563 0.406,0.917 0.406,0.917 1.052,1.313 true 0.104,0.833 0.479,1.052 0.375,0.219 10 false SST

Using SST and a hammer, remove the transaxle housing type T oil seal from the transaxle housing.

SST: 09950-70010 (09951-07100)
09950-60011 (09951-00510)

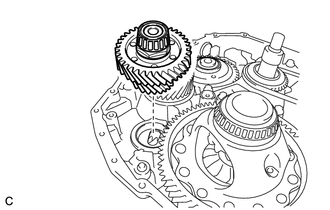

Hide Display 31.REMOVE REDUCTION DRIVEN GEAR

Remove the reduction driven gear from the transaxle case sub-assembly.

Hide Display 41301L 32.REMOVE DIFFERENTIAL CASE SUB-ASSEMBLY

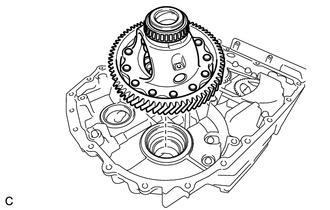

Remove the differential case sub-assembly from the transaxle case sub-assembly.

Hide Display 35317A 33.REMOVE NO. 2 TRANSMISSION OIL PUMP SEPARATOR PLATE

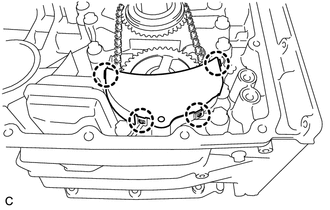

Detach the 4 claws to remove the No. 2 transmission oil pump separator plate from the No. 1 transmission oil pump separator plate.

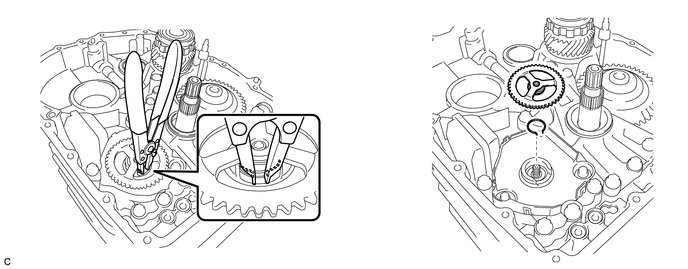

Hide Display 35782P 34.REMOVE DRIVE SPROCKET

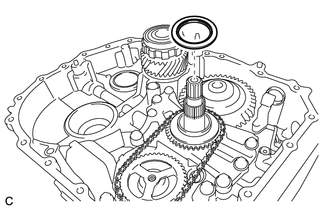

Remove the thrust needle roller bearing from the drive sprocket.

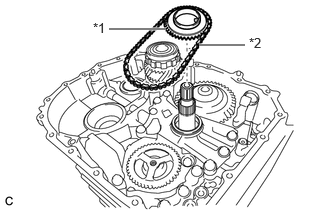

1.135,0.302 1.729,0.302 true 2.073,0.469 2.552,0.469 true 0.969,0.208 1.25,0.448 0.281,0.24 10 false *1 2.594,0.365 2.875,0.604 0.281,0.24 10 false *2

*1	Drive Sprocket
*2	Transmission Drive Chain

Remove the drive sprocket and transmission drive chain.

Hide Display 35783N 35.REMOVE DRIVEN SPROCKET

Using a snap ring expander, remove the driven sprocket from the front oil pump assembly.

Remove the snap ring from the front oil pump assembly.

Hide Display 35316A 36.REMOVE NO. 1 TRANSMISSION OIL PUMP SEPARATOR PLATE

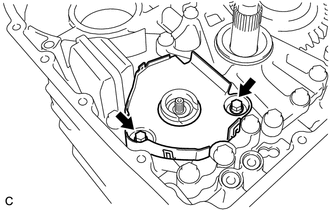

Remove the 2 bolts and No. 1 transmission oil pump separator plate from the front oil pump assembly.

Hide Display 35310A 37.REMOVE FRONT OIL PUMP ASSEMBLY

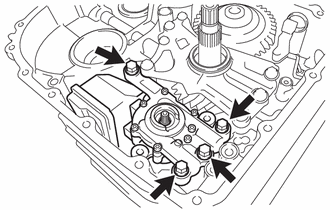

Remove the 4 bolts and front oil pump assembly from the transaxle case sub-assembly.

Remove the front oil pump cover gasket from the transaxle case sub-assembly.

Hide Display 35330J 38.REMOVE OIL STRAINER ASSEMBLY

Remove the 2 bolts and oil strainer assembly from the front oil pump assembly.

Remove the O-ring from the oil strainer assembly.

Hide Display 35016E 39.REMOVE TRANSMISSION CASE PLATE SUB-ASSEMBLY

Remove the 2 bolts and transmission case plate sub-assembly from the transaxle case sub-assembly.

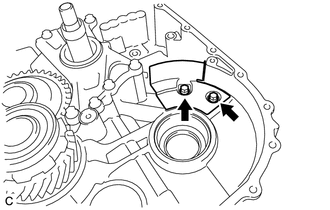

Hide Display 35174B 40.REMOVE OIL RESERVOIR LOCK PLATE

Remove the 2 bolts and oil reservoir lock plate from the transaxle case sub-assembly.

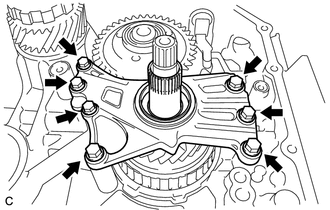

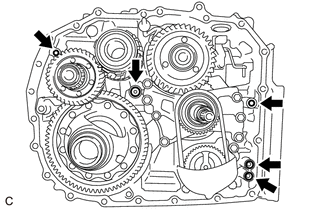

Hide Display 35370E 41.REMOVE STATOR (CVT) SHAFT ASSEMBLY

Remove the 7 bolts and stator (CVT) shaft assembly from the transaxle case sub-assembly.

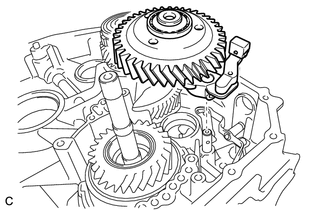

Hide Display 33032 42.REMOVE 1ST GEAR SUB-ASSEMBLY

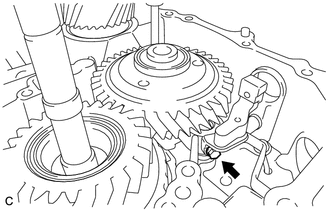

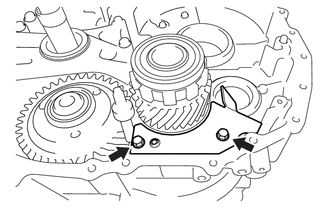

Remove the bolt to disconnect the No. 1 gear shift fork assembly from the No. 1 gear shift fork shaft.

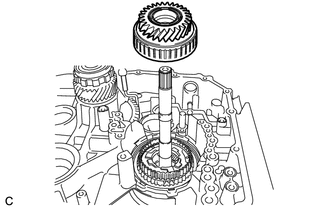

Remove the 1st gear sub-assembly with the No. 1 gear shift fork assembly from the No. 1 gear shift fork shaft.

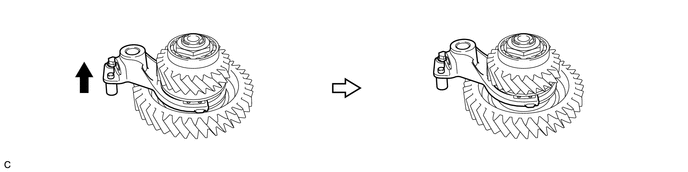

Hide Display 33210A 43.REMOVE NO. 1 GEAR SHIFT FORK ASSEMBLY

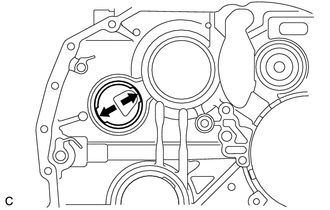

Move the No. 1 gear shift fork assembly as shown in the illustration.

Remove the No. 1 gear shift fork assembly from the 1st gear sub-assembly.

Hide Display 44.REMOVE STAY

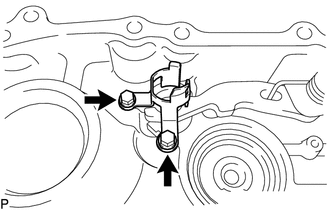

Remove the bolt and stay from the No. 1 gear shift fork assembly.

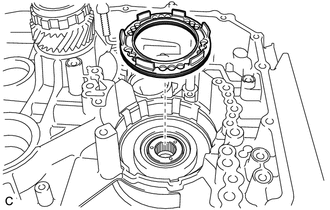

Hide Display 35610A 45.REMOVE FORWARD MULTIPLE DISC CLUTCH ASSEMBLY

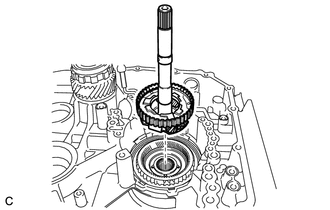

Remove the forward multiple disc clutch assembly from the planetary gear assembly.

Remove the thrust bearing race from the forward multiple disc clutch assembly.

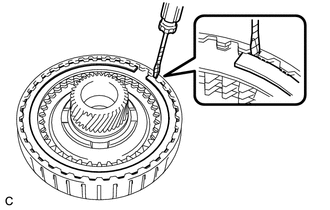

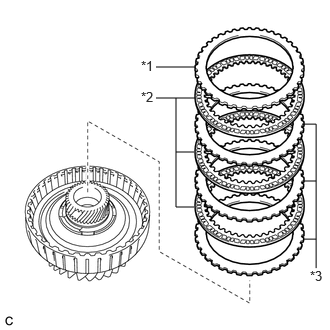

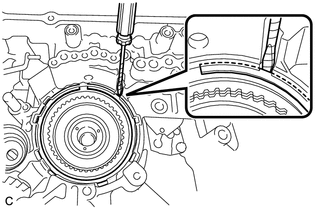

Hide Display 35633H 46.REMOVE FORWARD MULTIPLE DISC CLUTCH CLUTCH DISC

Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the forward clutch drum sub-assembly.

NOTICE:: Be careful not to damage the forward clutch drum sub-assembly.

3.146,1.292 3.292,1.292 3.292,1.292 3.292,2.792 false 2.021,2.156 1.833,2.156 1.833,2.156 1.833,1.021 false 1.625,1.021 2.031,1.021 false 1.833,1.583 2.021,1.583 false 3.167,1.885 3.292,1.885 false 3.156,2.49 3.292,2.49 false 1.625,0.698 2.031,0.698 false 1.469,0.604 1.771,0.823 0.302,0.219 10 false *1 1.469,0.927 1.76,1.156 0.292,0.229 10 false *2 3.229,2.792 3.417,3.01 0.188,0.219 10 false *3

*1	Forward Clutch Flange
*2	Forward Multiple Disc Clutch Clutch Disc
*3	Forward Multiple Disc Clutch Clutch Plate

Remove the forward clutch flange, 3 forward multiple disc clutch clutch discs and 3 forward multiple disc clutch clutch plates from the forward clutch drum sub-assembly.

Hide Display 47.REMOVE NO. 1 CLUTCH BALANCER

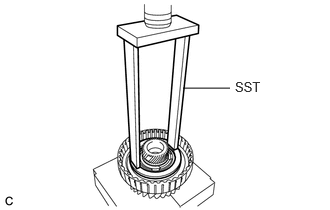

1.906,0.917 2.396,0.917 false 2.448,0.823 2.833,1.094 0.385,0.271 10 false SST

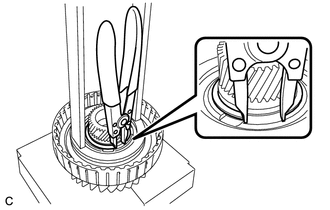

Place SST on the No. 1 clutch balancer and compress the forward clutch return spring sub-assembly with a press.

SST: 09387-00020

NOTICE:: Do not compress the forward clutch return spring sub-assembly excessively.

Using a snap ring expander, remove the snap ring from the forward clutch drum sub-assembly.

Remove the No. 1 clutch balancer from the forward clutch drum sub-assembly.

Remove the D-ring from the No. 1 clutch balancer.

Hide Display 35603E 48.REMOVE FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY

Remove the forward clutch return spring sub-assembly from the forward clutch drum sub-assembly.

Hide Display 49.REMOVE FORWARD CLUTCH PISTON

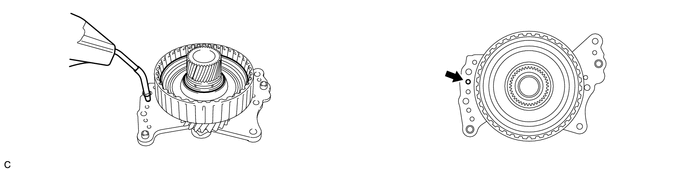

Install the forward clutch drum sub-assembly to the stator (CVT) shaft assembly.

Apply compressed air (approximately 250 kPa (2.5 kgf/cm², 36 psi)) to the fluid hole of the stator (CVT) shaft assembly to separate the forward clutch piston from the forward clutch drum sub-assembly.

NOTICE:: Be careful as fluid may spray when applying compressed air.

Remove the forward clutch piston from the forward clutch drum sub-assembly.

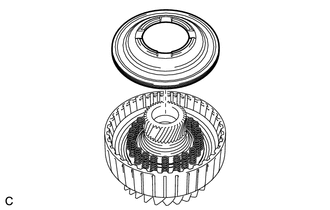

1.021,0.302 1.302,0.49 0.281,0.188 10 false *1 2.625,1.844 2.896,2.042 0.271,0.198 10 false *2

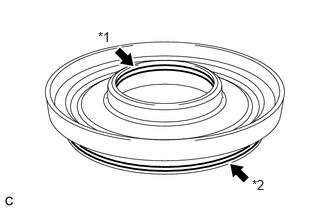

*1	O-Ring
*2	D-Ring

Remove the O-ring and D-ring from the forward clutch piston.

Remove the forward clutch drum sub-assembly from the stator (CVT) shaft assembly.

Hide Display 50.REMOVE CLUTCH DRUM OIL SEAL RING

Remove the 2 clutch drum oil seal rings from the stator (CVT) shaft assembly.

NOTICE:: Do not expand the clutch drum oil seal rings excessively.

Hide Display 35720M 51.REMOVE PLANETARY GEAR ASSEMBLY

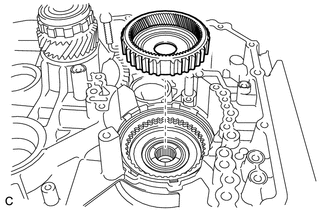

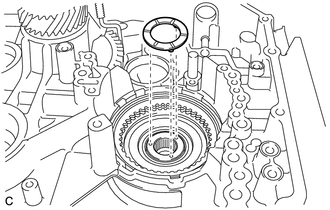

Remove the planetary gear assembly from the front planetary ring gear sub-assembly.

Remove the thrust needle roller bearing from the planetary gear assembly.

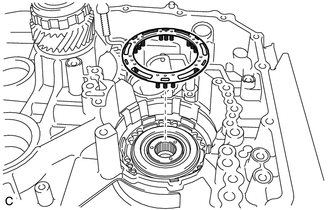

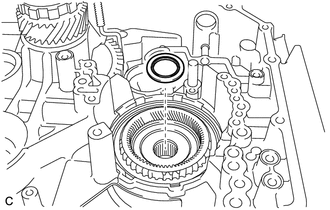

Hide Display 35075D 52.REMOVE FRONT PLANETARY RING GEAR SUB-ASSEMBLY

Remove the thrust needle roller bearing from the front planetary ring gear sub-assembly.

Remove the front planetary ring gear sub-assembly from the transaxle case sub-assembly.

Hide Display 35726A 53.REMOVE PLANETARY RING GEAR THRUST WASHER

Remove the planetary ring gear thrust washer from the transaxle case sub-assembly.

Hide Display 35681B 54.REMOVE NO. 1 BRAKE DISC

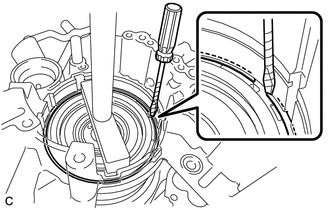

Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the transaxle case sub-assembly.

NOTICE:: Be careful not to damage the transaxle case sub-assembly.

3.083,1.354 3.25,1.354 3.25,1.354 3.25,2.917 false 3.083,1.854 3.25,1.854 false 3.083,2.354 3.25,2.354 false 2,1.167 2,2.167 2,2.167 2.177,2.167 false 2.177,1.167 1.833,1.167 false 2.177,1.625 2,1.625 false 1.875,0.771 2.208,0.771 false 1.688,0.688 1.865,0.896 0.177,0.208 10 true *1 1.646,1.063 1.813,1.281 0.167,0.219 10 true *2 3.156,2.958 3.344,3.198 0.188,0.24 10 false *3

*1	Brake Flange
*2	No. 1 Brake Disc
*3	No. 1 Brake Plate

Remove the brake flange, 3 No. 1 brake discs and 3 No. 1 brake plates from the transaxle case sub-assembly.

Hide Display 55.REMOVE 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

1.792,0.927 2.927,0.625 2.927,0.625 2.042,1.281 true 2.979,0.521 3.365,0.74 0.385,0.219 10 false SST

Place SST on the 1st and reverse brake return spring sub-assembly and compress it with a press.

SST: 09350-32014 (09351-32040)
09950-70010 (09951-07200)

NOTICE:: Do not compress the 1st and reverse brake return spring sub-assembly excessively.

Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the transaxle case sub-assembly.

NOTICE:: Be careful not to damage the transaxle case sub-assembly.

Remove the 1st and reverse brake return spring sub-assembly from the transaxle case sub-assembly.

Hide Display 35623L 56.REMOVE REVERSE BRAKE PISTON

Apply compressed air (approximately 250 kPa (2.5 kgf/cm2, 36 psi)) to the fluid hole to disconnect the reverse brake piston from the transaxle case sub-assembly.

NOTICE:: Be careful as fluid may spray when applying compressed air.

Remove the reverse brake piston from the transaxle case sub-assembly.

Remove the 2 O-rings from the reverse brake piston.

Hide Display 57.REMOVE REDUCTION DRIVEN GEAR REAR TAPERED ROLLER BEARING (OUTER RACE)

0.656,1.479 1.167,1.479 false 0.354,1.385 0.813,1.583 0.458,0.198 10 false SST

Using SST, remove the reduction driven gear rear tapered roller bearing (outer race) from the transaxle case sub-assembly.

SST: 09308-00010

HINT:: Align the claw of SST with the indentation of the transaxle case sub-assembly when removing the parts.

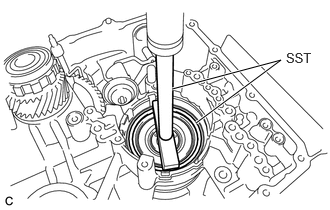

Hide Display 58.REMOVE DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE)

2.042,1.208 2.5,1.208 false 2.552,1.104 3.01,1.375 0.458,0.271 10 false SST

Using SST, remove the differential case rear tapered roller bearing (outer race) from the transaxle case sub-assembly.

SST: 09308-00010

HINT:: Align the claw of SST with the indentation of the transaxle case sub-assembly when removing the parts.

Hide Display 43420H 59.REMOVE FRONT DRIVE SHAFT OIL SEAL LH

1.073,1.531 0.365,1.104 0.365,1.104 1.156,1.25 true 0.063,1.01 0.5,1.25 0.438,0.24 10 false SST

Using SST and a hammer, remove the front drive shaft oil seal LH from the transaxle case sub-assembly.

SST: 09950-60011 (09951-00650)
09950-70010 (09951-07100)

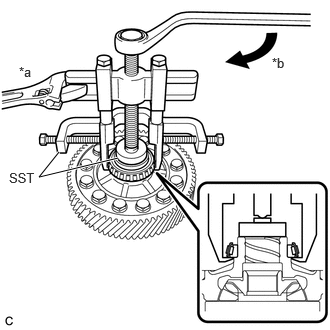

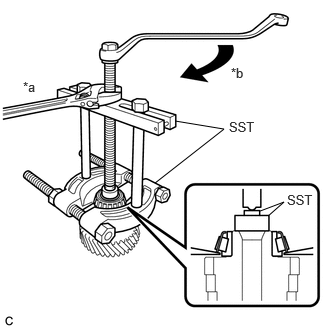

Hide Display 60.REMOVE REDUCTION DRIVEN GEAR REAR TAPERED ROLLER BEARING (INNER RACE)

2.792,2.25 2.958,2.104 2.958,2.104 2.708,2.198 false 1.615,1.906 2.333,1.344 2.333,1.344 1.823,1.26 false 0.24,0.823 0.49,1.083 0.25,0.26 10 false *a 2.406,0.677 2.677,0.927 0.271,0.25 10 false *b 2.99,2 3.333,2.198 0.344,0.198 10 false SST 2.385,1.24 2.729,1.438 0.344,0.198 10 false SST

*a	Hold
*b	Turn

Using SST, remove the reduction driven gear rear tapered roller bearing (inner race) from the reduction driven gear.

SST: 09950-00020
09950-00030
09950-40011  (09957-04010)
09950-60011  (09951-00250)

NOTICE:: Because SST is attached to the roller portion, there is a possibility that the roller portion could break and SST could come off before the reduction driven gear rear tapered roller bearing (inner race) comes off.

1.604,1.906 2.365,1.438 2.365,1.438 1.823,1.271 false 2.771,2.26 2.948,2.083 2.948,2.083 2.688,2.219 false 0.229,0.823 0.458,1.063 0.229,0.24 10 false *a 2.396,0.677 2.667,0.927 0.271,0.25 10 false *b 2.417,1.333 2.813,1.531 0.396,0.198 10 false SST 2.99,1.979 3.385,2.177 0.396,0.198 10 false SST

*a	Hold
*b	Turn

If the roller portion breaks and SST comes off, reattach SST to the inner race in the position shown in the illustration, and continue removing the parts.

SST: 09950-00020
09950-00030
09950-40011  (09957-04010)
09950-60011  (09951-00250)

Hide Display 61.REMOVE REDUCTION DRIVEN GEAR FRONT TAPERED ROLLER BEARING (INNER RACE)

0.771,1.521 0.531,1.875 0.531,1.875 1.438,1.573 true 0.271,0.615 0.531,0.844 0.26,0.229 10 false *a 2.938,0.479 3.219,0.719 0.281,0.24 10 false *b 0.219,1.802 0.594,2.01 0.375,0.208 10 false SST

*a	Hold
*b	Turn

Using SST, remove the reduction driven gear front tapered roller bearing (inner race) from the reduction driven gear.

SST: 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011)
09950-60011 (09951-00210)

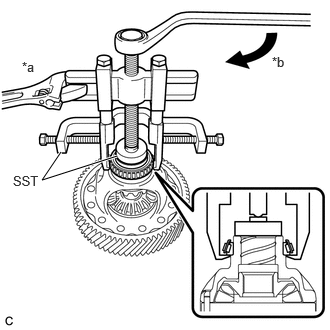

Hide Display 62.REMOVE DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE)

0.615,1.583 0.406,1.844 0.406,1.844 1.229,1.646 true 0.198,0.667 0.51,0.896 0.313,0.229 10 false *a 2.833,0.573 3.073,0.813 0.24,0.24 10 false *b 0.094,1.771 0.552,1.969 0.458,0.198 10 false SST

*a	Hold
*b	Turn

Using SST, remove the differential case rear tapered roller bearing (inner race) from the differential case sub-assembly.

SST: 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011)
09950-60011 (09951-00460)

Hide Display 63.REMOVE DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE)

0.635,1.583 0.438,1.875 0.438,1.875 1.219,1.625 true 0.229,0.615 0.479,0.833 0.25,0.219 10 false *a 2.833,0.563 3.083,0.823 0.25,0.26 10 false *b 0.135,1.802 0.594,2 0.458,0.198 10 false SST

*a	Hold
*b	Turn

Using SST, remove the differential case front tapered roller bearing (inner race) from the differential case sub-assembly.

SST: 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011)
09950-60011 (09951-00460)

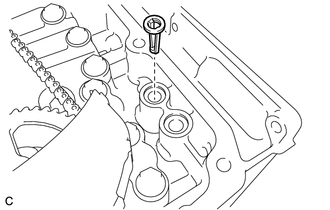

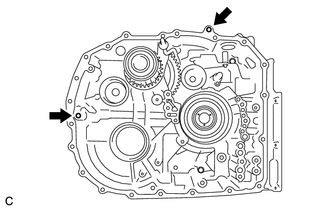

Hide Display 64.REMOVE STRAIGHT PIN

Remove the 2 straight pins from the transaxle case sub-assembly.
