M20C-FKS ENGINE CONTROL  SFI SYSTEM  P04602A  Fuel Level Sensor "A" Signal Stuck In Range


DESCRIPTION

Refer to DTC P046012.

Click hereEngine / Hybrid System>M20C-FKS (ENGINE CONTROL)>SFI SYSTEM>P046012

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P04602A Fuel Level Sensor "A" Signal Stuck In Range The change in the fuel sender gauge value is below the threshold when a certain amount of fuel is calculated to have been consumed. (1 trip detection logic).
·

Fuel sender gauge assembly

·

NO. 2 fuel sender gauge assembly

·

ECM


Comes on DTC stored SAE: P0461

MONITOR DESCRIPTION

When the fuel sender gauge assembly output value changes less than a specified amount, when compared to the fuel consumption calculated from the fuel injection volume, the ECM will detect a malfunction, illuminate the MIL and store a DTC.

MONITOR STRATEGY

Required Sensors/Components Fuel level sensor
Frequency of Operation Continuous

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20C-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>M20C-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

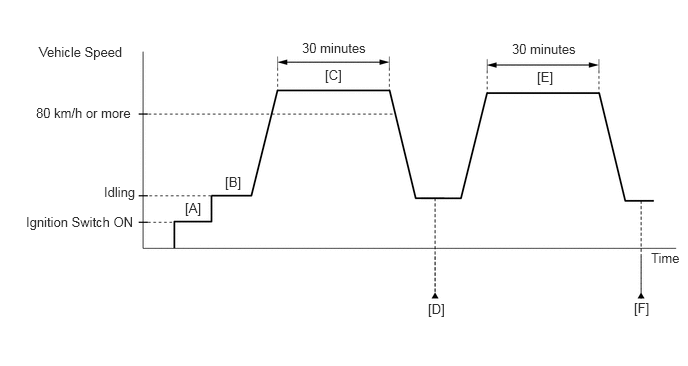

A421650E04
1.083,1.917 2,2.115 0.917,0.198 10 false Idling 0.271,2.229 1.719,2.458 1.448,0.229 10 false Ignition Switch ON 0.375,1.094 1.823,1.323 1.448,0.229 10 false 80 km/h or more 0.406,0.458 1.854,0.688 1.448,0.229 10 false Vehicle Speed 6.781,2.604 7.146,2.854 0.365,0.25 10 false Time 1.927,2.083 2.844,2.281 0.917,0.198 10 false [A] 2.344,1.813 3.26,2.01 0.917,0.198 10 false [B] 3.385,0.698 4.302,0.896 0.917,0.198 10 false [C] 3.146,0.417 4.063,0.615 0.917,0.198 10 false 30 minutes 5.333,0.427 6.25,0.625 0.917,0.198 10 false 30 minutes 4.458,3.135 5.375,3.333 0.917,0.198 10 false [D] 5.594,0.719 6.51,0.917 0.917,0.198 10 false [E] 6.604,3.125 6.938,3.458 0.333,0.333 10 false [F]

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Start the engine [B].

9.

Drive the vehicle at 80 km/h (50 mph) or more for 30 minutes [C].

10.

Enter the following menus: Powertrain / Engine / Trouble Codes [D].

11.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



12.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

13.

Input the DTC: P04602A.

14.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result is INCOMPLETE, perform steps [E] through [F].

·

[A] to [D]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.



15.

Drive the vehicle at 80 km/h (50 mph) or more for 30 minutes [E].

16.

Enter the following menus: Powertrain / Engine / Trouble Codes [F].

17.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



18.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

19.

Input the DTC: P04602A.

20.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

[A] to [F]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




CAUTION / NOTICE / HINT

HINT:

Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.INTERVIEW THE CUSTOMER
a.

Interview the customer for details about when they refuel the vehicle.

HINT:

When the fuel tank is full, if the vehicle is repeatedly driven a short distance and then refueled, the fuel sender gauge output value will not change. In this case, the ECM may judge that the fuel sender gauge is stuck and store DTC P04602A. If the vehicle was driven in this manner, as the DTC was stored due to a user action, clear the DTCs without performing troubleshooting and return the vehicle to the customer.



Result:
Proceed to
NEXT



NEXT

2.INSPECT FUEL SENDER GAUGE ASSEMBLY
