RM36D0EC _58 Vehicle Interior _083098 MIRROR (INT) _0400605 DIGITAL INNER MIRROR A

MIRROR (INT) DIGITAL INNER MIRROR REMOVAL

PROCEDURE

Hide Display 86466E 1.REMOVE NO. 2 FORWARD RECOGNITION COVER

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>REMOVAL201910,202304,_51,_083055,_0401005,RM100000001JBO1_02_0001,202304,202405,_51,_083055,_0401005,RM1000000029L6J_02_0001,202405,999999,_51,_083055,_0401005,RM100000002LEFV_02_0001,

Hide Display 86466D 2.REMOVE NO. 1 FORWARD RECOGNITION COVER

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>REMOVAL201910,202304,_51,_083055,_0401005,RM100000001JBO1_02_0002,202304,202405,_51,_083055,_0401005,RM1000000029L6J_02_0002,202405,999999,_51,_083055,_0401005,RM100000002LEFV_02_0002,

Hide Display 87810 3.REMOVE INNER REAR VIEW MIRROR ASSEMBLY

a.

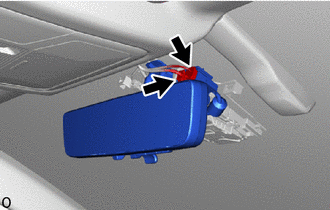

B606499C01

0,0 0,0 false

Disconnect the 2 connectors.

b.

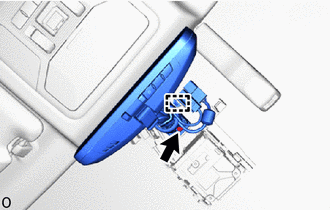

B606500C01

0,0 0,0 false

Detach the clamp.

c.

Using a T20 "TORX" socket wrench, remove the "TORX" screw.

d.

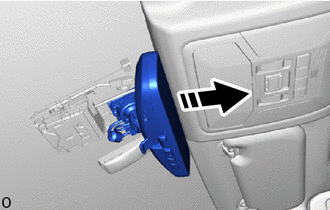

B606501C01

0,0 0,0 false

V113147

Remove in this Direction

Slide the inner rear view mirror assembly as shown in the illustration and remove the inner rear view mirror assembly.
