RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400600 FRONT DOOR COURTESY SWITCH A

LIGHTING (INT) FRONT DOOR COURTESY SWITCH REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

Hide Display 62312B 2.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

HINT:: Pull back the front door opening trim weatherstrip LH so that the lower center pillar garnish LH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201910,999999,_59,_083093,_0403688,RM100000001JUGA_02_0003,

Hide Display 3.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

for SFTM Made:

for GTMC Made:

Hide Display 72693 4.REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

for SFTM Made:

for GTMC Made:

Hide Display 67918E 5.REMOVE REAR DOOR SCUFF PLATE LH

Hide Display 62332C 6.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

HINT:: Pull back the rear door opening trim weatherstrip LH so that the lower center pillar garnish LH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201910,999999,_59,_083093,_0403690,RM100000001JUGH_02_0002,

Hide Display 73233 7.REMOVE LAP BELT OUTER ANCHOR COVER

Hide Display 73220 8.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

Hide Display 62414A 9.REMOVE LOWER CENTER PILLAR GARNISH LH

Hide Display 84233 10.REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

0,0 0,0 false

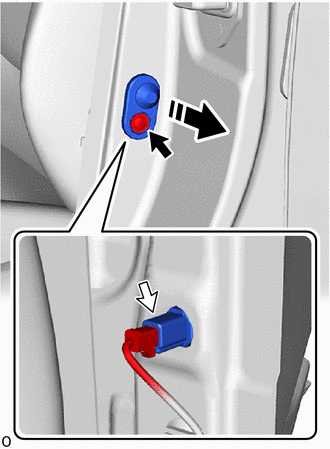

Disconnect the connector.

Using T30 "TORX" socket wrench, remove the "TORX" screw and front door courtesy light switch assembly.
