RM36D0EC _59 Vehicle Exterior _083093 DOOR / HATCH _0403701 FUEL LID OPENER MOTOR ASSEMBLY A

DOOR / HATCH  FUEL LID OPENER MOTOR ASSEMBLY  INSTALLATION


PROCEDURE

Hide 77030A 1.INSTALL FUEL LID LOCK WITH MOTOR ASSEMBLY

a.

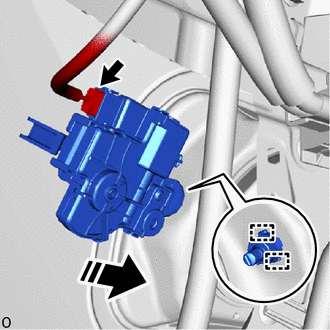

B523362C01
0,0 0,0 false
V113147

Install in this Direction


Connect the connector.


b.

Attach the guide and install the fuel lid lock with motor assembly as shown in the illustration.


Hide 77377 2.INSTALL FUEL FILLER OPENING LID LOCK RETAINER

a.

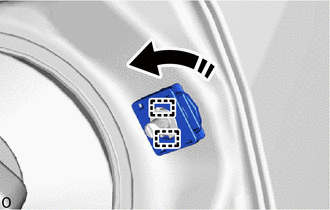

B523363C01
0,0 0,0 false
V113147

Install in this Direction


Rotate the fuel filler opening lid lock retainer counterclockwise and attach the guide, then install a new fuel filler opening lid lock retainer as shown in the illustration.

HINT:

The fuel filler opening lid lock retainer is a non-reusable part. Make sure to replace it with a new one.



Hide 77378A 3.INSTALL FUEL FILLER OPENING LID LOCK COVER

a.

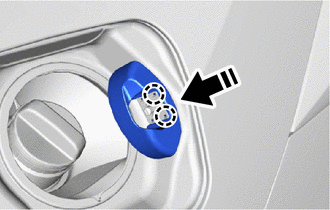

B520460C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install a new fuel filler opening lid lock cover as shown in the illustration.

HINT:

The fuel filler opening lid lock cover is a non-reusable part. Make sure to replace it with a new one.
