RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400601 REAR DOOR COURTESY SWITCH A

LIGHTING (INT) REAR DOOR COURTESY SWITCH INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

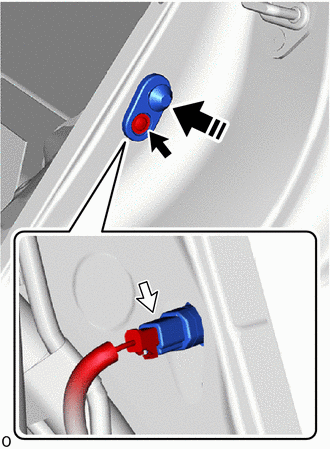

Hide Display 84234 1.INSTALL REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

0,0 0,0 false

	Install in this Direction
	"TORX" Screw
	Connector

Using T30 "TORX" socket wrench, install the rear door courtesy light switch assembly with the "TORX" screw.

Torque:: 6.3 N*m (64 kgf*cm, 56 in.*lbf)

Connect the connector.

Hide Display 62552F 2.INSTALL REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202004,202304,_58,_083106,_0400609,RM100000001MYUI_01_0021,202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0021,

Hide Display 62332C 3.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION201910,999999,_59,_083093,_0403690,RM100000001JUGI_02_0001,

Hide Display 73706 4.INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>INSTALLATION202004,999999,_58,_083103,_0401777,RM100000001MO7Y_01_0030,

Hide Display 58466J 5.INSTALL NO. 2 BATTERY SERVICE COVER BOARD (for HV Model, RH Side)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY BLOWER>INSTALLATION202004,999999,_51,_083048,_0400707,RM100000001MYUS_02_0124,

Hide Display 58467H 6.INSTALL NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY BLOWER>INSTALLATION202004,999999,_51,_083048,_0400707,RM100000001MYUS_02_0126,

Hide Display 71304C 7.INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY LH

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083102,_0419059,RM100000001MO2U_01_0031,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083102,_0419060,RM100000001MO2Z_01_0031,

Hide Display 67918E 8.INSTALL REAR DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202004,202304,_58,_083106,_0400609,RM100000001MYUI_01_0033,202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0033,

Hide Display 9.INSTALL REAR SEATBACK ASSEMBLY LH

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083102,_0419059,RM100000001MO2U_01_0035,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083102,_0419060,RM100000001MO2Z_01_0035,

Hide Display 10.INSTALL REAR SEATBACK ASSEMBLY RH (for RH Side)

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083102,_0419059,RM100000001MO2U_01_0036,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083102,_0419060,RM100000001MO2Z_01_0036,

Hide Display 73350C 11.INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) (for RH Side)

for SFTM Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083103,_0419079,RM100000001MO7Q_01_0083,

for GTMC Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083103,_0419080,RM100000001MO7U_01_0083,

Hide Display 72693 12.INSTALL REAR SEAT CUSHION LOCK HOOK

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083102,_0419059,RM100000001MO2U_01_0038,

for GTMC Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083103,_0419080,RM100000001MO7U_01_0098,

Hide Display 13.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202004,999999,_58,_083102,_0419059,RM100000001MO2U_01_0025,

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202004,999999,_58,_083102,_0419060,RM100000001MO2Z_01_0025,
