RM36D0EC _58 Vehicle Interior _083094 THEFT DETERRENT / KEYLESS ENTRY _0400682 ELECTRICAL KEY OSCILLATOR(for Rear Floor) A

THEFT DETERRENT / KEYLESS ENTRY ELECTRICAL KEY OSCILLATOR(for Rear Floor) REMOVAL

PROCEDURE

Hide Display 1.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

for GTMC Made:

for SFTM Made:

Hide Display 72693 2.REMOVE REAR SEAT CUSHION LOCK HOOK

for GTMC Made:

for SFTM Made:

Hide Display 67918E 3.REMOVE REAR DOOR SCUFF PLATE LH (for HV Model)

Hide Display 67917C 4.REMOVE REAR DOOR SCUFF PLATE RH (for HV Model)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0071,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0071,

Hide Display 58466J 5.REMOVE NO. 2 BATTERY SERVICE COVER BOARD (for HV Model)

Hide Display 58467H 6.REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

Hide Display 58464D 7.REMOVE BATTERY SERVICE COVER BOARD (for HV Model)

Hide Display 71033 8.REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY (for HV Model)

for GTMC Made:

for SFTM Made:

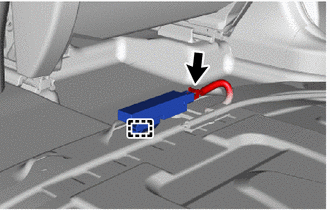

Hide Display 899A0A 9.REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (for Gasoline Model)

Disconnect the connector.

Detach the clamp and remove the No. 2 indoor electrical key antenna assembly.

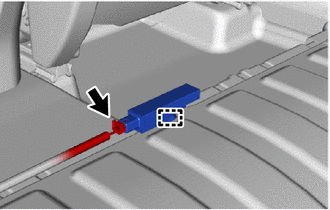

Hide Display 899A0 10.REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (for HV Model)

Disconnect the connector.

Detach the clamp and remove the No. 1 indoor electrical key antenna assembly.
