AUDIO / VIDEO NOISE FILTER INSTALLATION

PROCEDURE

Hide Display 86011A 1.INSTALL RADIO SETTING CONDENSER

a.

E183101

Attach the claw to install a new terminal cover to the wire harness.

NOTICE:: ·

Make sure to hold the crimping side of the terminal when installing the wire harness to the terminal cover.

·

Make sure not to bend the exposed wire when installing the wire harness to the terminal cover.

·

Do not use excessive force when inserting the wire harness into the terminal cover.

·

If the terminal cover has been deformed during installation, replace the terminal and terminal cover with new ones.

b.

E365959C02

0,0 0,0 false

V113147

Install in this Direction

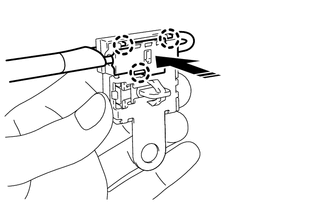

Attach the claw to install the new terminal cover with wire harness to a new condenser.

NOTICE:: ·

Do not use excessive force when inserting the terminal cover into the condenser.

·

If the terminal cover has been deformed during installation, replace the terminal, terminal cover and condenser with new ones.

c.

E406831

Attach the clamp to temporarily install a new radio setting condenser with wire harness.

d.

Install the radio setting condenser with the bolt.

Torque:: 10 N*m (102 kgf*cm, 7 ft.*lbf)
