General
_083136
MAINTENANCE
_0403538
BACK-UP LIGHT BULB
A
MAINTENANCE BACK-UP LIGHT BULB REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
67848

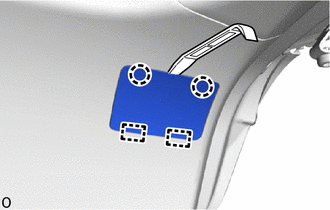

1.REMOVE BACK DOOR SERVICE HOLE COVER LH
a.
Using moulding remover A, detach the claw and guide to remove the back door service hole cover LH.
81550N
2.REMOVE BACK-UP LIGHT BULB
a.

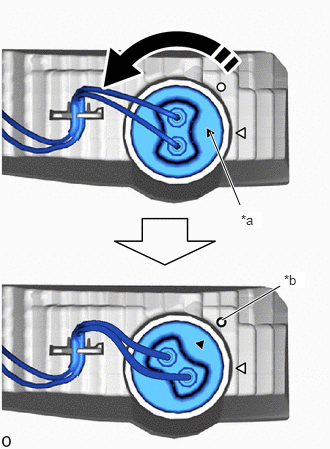

for Type A:
i.
1.969,0.958 1.604,0.333
true
1.927,3.896 1.625,4.135
true
1.438,0.135 1.656,0.302
0.219,0.167
10
true
*a
1.427,4.104 1.635,4.302
0.208,0.198
10
true
*b
| *a | Matchmark |
| *b | Unlock Position Mark |
|
Turn in this Direction |
Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark and disconnect the bulb socket.
b.

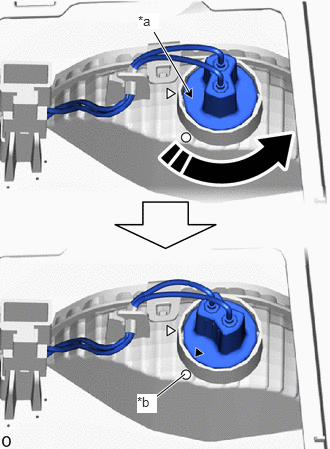

for Type B:
i.
2.188,1.375 2.5,2.135
true
2.313,3.333 2.917,2.979
true
2.51,2.208 2.729,2.375
0.219,0.167
10
true
*a
2.958,2.833 3.177,3
0.219,0.167
10
true
*b
| *a | Matchmark |
| *b | Unlock Position |
|
|
Turn in this Direction |
Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position and disconnect the bulb socket.
c.
0,0 0,0
false
|
|

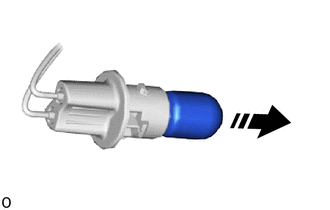

Remove in this Direction |
Remove the back-up light bulb from the bulb socket.
