RM36D0EC _V1 General _083136 MAINTENANCE _0403537 REAR TURN SIGNAL LIGHT BULB A

MAINTENANCE  REAR TURN SIGNAL LIGHT BULB  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81550L 2.REMOVE REAR TURN SIGNAL LIGHT BULB

a.

for Type A:

i.

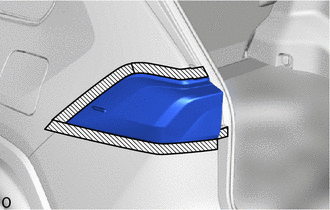

B555538
0,0 0,0 false
V100155

Protective Tape


Apply protective tape as shown in the illustration.


ii.

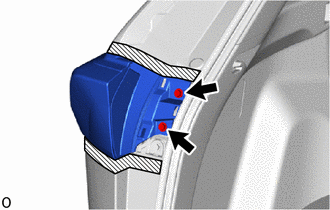

B555539

Remove the 2 screws.


iii.

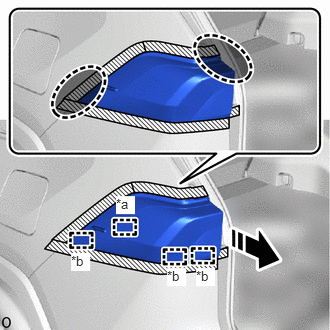

B555540C01
1.208,2.042 1.406,2.229 0.198,0.188 10 true *a 0.74,2.635 0.938,2.823 0.198,0.188 10 true *b 1.74,2.792 1.938,2.979 0.198,0.188 10 true *b 2.042,2.792 2.24,2.979 0.198,0.188 10 true *b
*a Pin
*b Guide
V113146

Place Hands Here
V113147

Remove in this Direction


Place your hands at the position shown in the illustration, pull in the removal direction, detach the guide and pin and remove the rear combination light assembly LH.

NOTICE:

Pull the rear combination light assembly LH straight towards the rear of the vehicle to prevent the guide from becoming damaged.



iv.

Support the rear combination light assembly LH with one hand.


v.

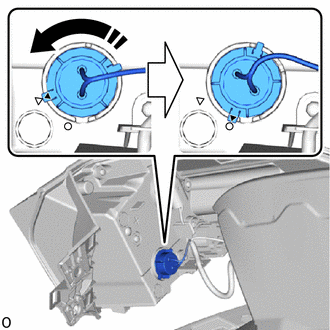

B555553
0.406,1.24 0.5,1.01 true 2.625,1.354 2.385,1.313 true 0.281,1.25 0.49,1.438 0.208,0.188 10 true *a 2.667,1.292 2.875,1.448 0.208,0.156 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark and disconnect the bulb socket.



b.

for Type B:

i.

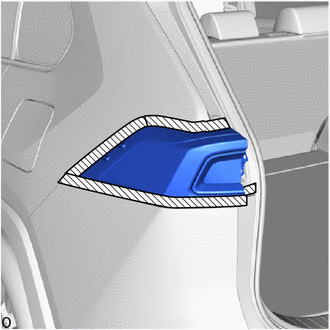

B573026C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape as shown in the illustration.


ii.

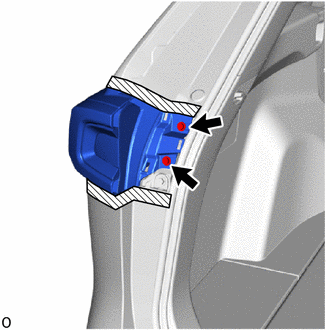

B573027

Remove the 2 screws.


iii.

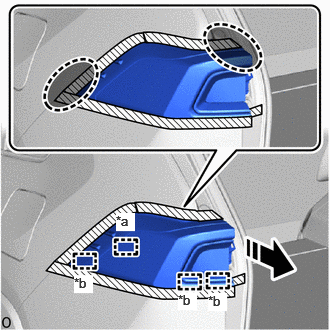

B573028C02
1.208,2.219 1.406,2.406 0.198,0.188 10 true *a 0.771,2.865 0.969,3.052 0.198,0.188 10 true *b 1.854,3.042 2.052,3.229 0.198,0.188 10 true *b 2.167,3.052 2.365,3.24 0.198,0.188 10 true *b
*a Pin
*b Guide
V113146

Place Hands Here
V113147

Remove in this Direction


Place your hands at the position shown in the illustration, pull in the removal direction, detach the guide and pin and remove the rear combination light assembly LH.

NOTICE:

Pull the rear combination light assembly LH straight towards the rear of the vehicle to prevent the guide from becoming damaged.



iv.

Support the rear combination light assembly LH with one hand.


v.

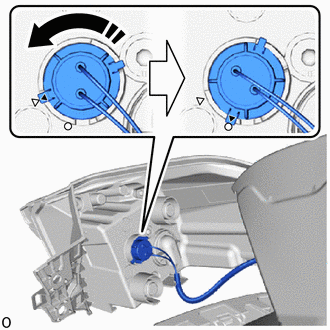

B573059
0.458,1.01 0.385,1.229 true 2.354,1.323 2.031,1.26 true 0.25,1.229 0.563,1.385 0.313,0.156 10 true *a 1.854,1.177 2.167,1.333 0.313,0.156 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark and disconnect the bulb socket.



c.
E402980
0,0 0,0 false
V113147

Remove in this Direction


Remove the rear turn signal light bulb from the bulb socket.
