LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY  REASSEMBLY

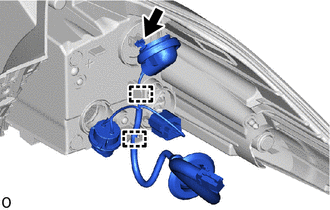

Attach the clamp and install the rear combination light socket and wire LH.

1.479,0.75 2.031,0.573 true 1.104,1.469 1.354,0.594 true 1.708,2.958 1.99,2.854 true 2.063,0.438 2.271,0.625 0.208,0.188 10 true *a 1,1.469 1.219,1.667 0.219,0.198 10 true *b 2,2.719 2.188,2.927 0.188,0.208 10 true *c

*a	Matchmark
*b	Unlock Position Mark
*c	Lock Position Mark
	Turn in this Direction

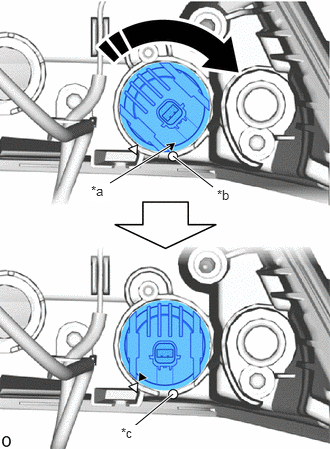

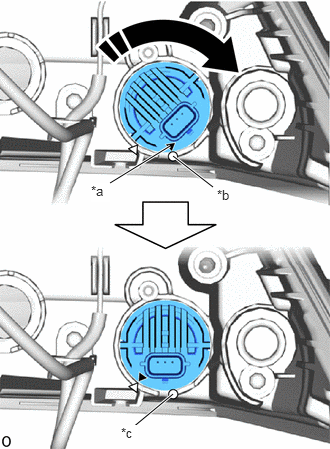

Align the matchmark of the LED socket with the unlock position mark, and then turn the LED socket clockwise until the matchmark is aligned with the lock position mark and connect the LED socket.

2.219,1.948 1.802,1.625 true 1.771,1.521 1.146,1.906 true 1.375,4.458 1.802,4.104 true 0.948,1.906 1.146,2.104 0.198,0.198 10 true *a 2.26,1.948 2.573,2.104 0.313,0.156 10 false *b 1.26,4.427 1.438,4.583 0.177,0.156 10 true *c

*a	Matchmark
*b	Unlock Position Mark
*c	Lock Position Mark
	Turn in this Direction

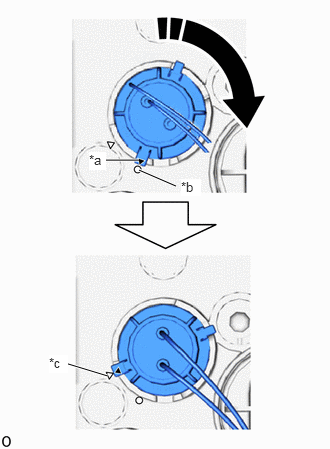

Align the matchmark of the stop light LED LH with the unlock position mark and turn the stop light LED LH clockwise until the matchmark is aligned with the lock position mark.

0,0 0,0 false

	Connector
	Screw

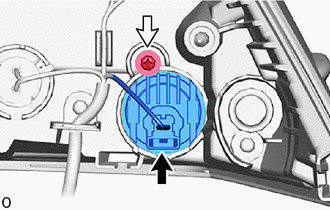

Install the screw.

2.219,1.948 1.802,1.625 true 1.771,1.521 1.146,1.906 true 1.375,4.458 1.802,4.104 true 0.948,1.906 1.146,2.104 0.198,0.198 10 true *a 2.26,1.948 2.573,2.104 0.313,0.156 10 false *b 1.26,4.427 1.438,4.583 0.177,0.156 10 true *c

*a	Matchmark
*b	Unlock Position Mark
*c	Lock Position Mark
	Turn in this Direction

Align the matchmark of the stop light LED LH with the unlock position mark and turn the stop light LED LH clockwise until the matchmark is aligned with the lock position mark.

0,0 0,0 false

	Connector
	Screw

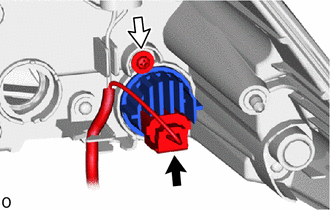

Install the screw.

0,0 0,0 false

Install in this Direction

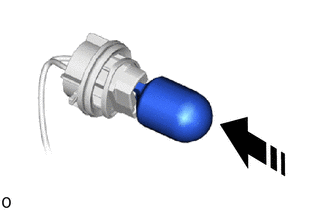

Install the rear turn signal light bulb to the bulb socket.

for Type A:

i.

1.469,1.74 1.125,1.74 true 1.51,1.615 1.896,1.781 true 0.958,3.26 1.073,3.854 true 0.969,1.646 1.146,1.833 0.177,0.188 10 true *a 1.938,1.74 2.146,1.917 0.208,0.177 10 true *b 0.854,3.052 1.052,3.24 0.198,0.188 10 true *c

*a	Matchmark
*b	Unlock Position Mark
*c	Lock Position Mark
	Turn in this Direction

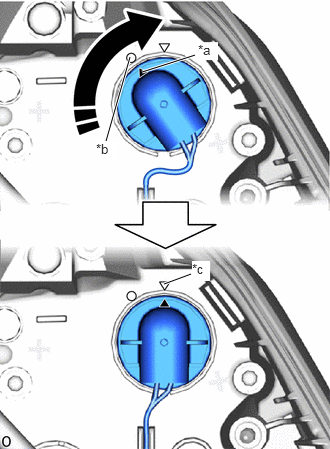

Align the matchmark of the bulb socket with the unlock position mark and then turn the bulb socket clockwise until the matchmark is aligned with the lock position mark.

for Type B:

i.

1.448,1.667 1.104,1.667 true 1.448,1.771 1.833,1.938 true 0.677,3.781 1.125,3.917 true 0.927,1.583 1.104,1.771 0.177,0.188 10 true *a 1.885,1.865 2.094,2.042 0.208,0.177 10 true *b 0.51,3.698 0.708,3.885 0.198,0.188 10 true *c

*a	Matchmark
*b	Unlock Position Mark
*c	Lock Position Mark
	Turn in this Direction

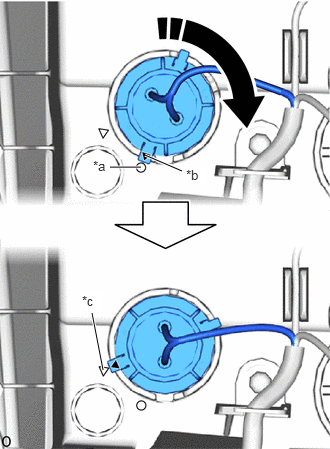

Align the matchmark of the bulb socket with the unlock position mark and then turn the bulb socket clockwise until the matchmark is aligned with the lock position mark.
