LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY  INSTALLATION

0,0 0,0 false

	Place Hands Here
	Install in this Direction

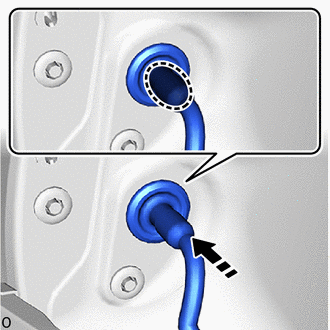

Place your hands at the position shown in the illustration, pass the wire harness into the vehicle and install the grommet.

for Type A:

i.

1.219,0.792 1.406,0.969 0.188,0.177 10 true *a 0.74,1.396 0.938,1.573 0.198,0.177 10 true *b 1.729,1.573 1.927,1.75 0.198,0.177 10 true *b 2.031,1.563 2.229,1.74 0.198,0.177 10 true *b

*a	Pin
*b	Guide
	Install in this Direction

Align the guide and pin and set the rear combination light assembly LH.

iii.

0,0 0,0 false

Protective Tape

Install the rear combination light assembly LH with the 2 screws.

for Type B:

i.

1.219,0.948 1.406,1.125 0.188,0.177 10 true *a 0.76,1.583 0.958,1.76 0.198,0.177 10 true *b 1.875,1.792 2.073,1.969 0.198,0.177 10 true *b 2.177,1.781 2.375,1.958 0.198,0.177 10 true *b

*a	Pin
*b	Guide
	Install in this Direction

Align the guide and pin and set the rear combination light assembly LH.

iii.

0,0 0,0 false

Protective Tape

Install the rear combination light assembly LH with the 2 screws.

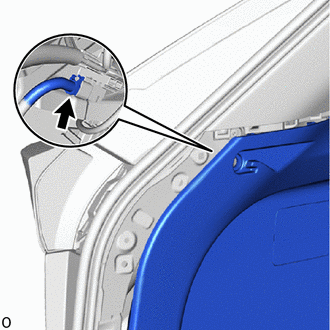

Insert your hand between the deck trim side panel assembly LH and the body and connect the connector.

0,0 0,0 false

	Install in this Direction
	Protective Tape

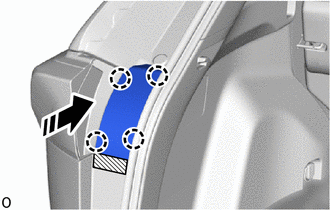

Attach the claw and install the rear combination light cover LH as shown in the illustration.
