RM36D0EC _58 Vehicle Interior _083103 SEAT BELT _0401777 CHILD RESTRAINT SEAT ANCHOR BRACKET A

SEAT BELT CHILD RESTRAINT SEAT ANCHOR BRACKET REMOVAL

PROCEDURE

Hide Display 71940A 1.REMOVE REAR SEAT HEADREST ASSEMBLY

a.

Remove the 2 rear seat headrest assemblies.

Hide Display 71960B 2.REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

a.

Remove the rear center seat headrest assembly.

Hide Display 3.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

a.

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0022,

b.

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0022,

Hide Display 72693 4.REMOVE REAR SEAT CUSHION LOCK HOOK

a.

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0001,

b.

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0001,

Hide Display 5.REMOVE REAR SEATBACK ASSEMBLY LH

a.

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0012,

b.

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0012,

Hide Display 73350C 6.REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

a.

for SFTM Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083103,_0419079,RM100000001MO7O_01_0085,

b.

for GTMC Made:

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT OUTER BELT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083103,_0419080,RM100000001MO7S_01_0085,

Hide Display 7.REMOVE REAR SEATBACK ASSEMBLY RH

a.

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0011,

b.

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0011,

Hide Display 73706 8.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

a.

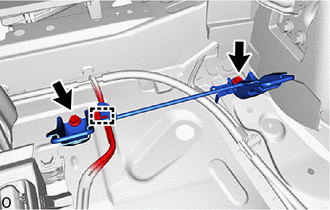

B554744

Detach the clamp.

b.

Remove the 2 bolts and child restraint seat anchor bracket sub-assembly LH.

Hide Display 73705 9.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.
