SEAT BELT  REAR CENTER SEAT OUTER BELT ASSEMBLY(for SFTM Made)  INSTALLATION

73350C 1.INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY

a.

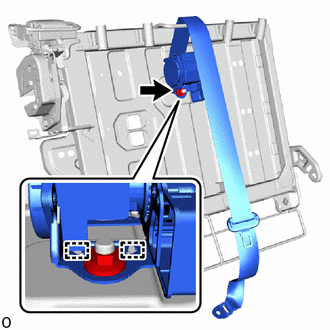

Attach the guide.

b.

Install the rear center seat outer belt assembly with the nut.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

2.INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD RH

72830 3.INSTALL REAR CENTER SEAT ARMREST ASSEMBLY

72868B 4.INSTALL CENTER ARMREST HINGE COVER

72667 5.INSTALL REAR UPPER SEATBACK LOCK BEZEL RH

72668E 6.INSTALL REAR LOWER SEATBACK LOCK BEZEL RH

73178A 7.INSTALL SEAT BELT ANCHOR COVER CAP

73373 8.INSTALL REAR SEAT SHOULDER BELT COVER

9.INSTALL REAR SEATBACK ASSEMBLY RH

73350C 10.INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

a.

1.656,2.906 2.417,3.01 true 2.448,2.917 2.76,3.073 0.313,0.156 10 false *a

*a	Protruding Part

Install the floor anchor of the rear center seat outer belt assembly with the nut.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the floor anchor of the rear center seat outer belt assembly to overlap the protruding part.

b.

Check that the ELR locks.

i.

With the rear center seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

72693 11.INSTALL REAR SEAT CUSHION LOCK HOOK

12.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

71960B 13.INSTALL REAR CENTER SEAT HEADREST ASSEMBLY

71940A 14.INSTALL REAR SEAT HEADREST ASSEMBLY
