SEAT  REAR SEAT ASSEMBLY(for SFTM Made)  REASSEMBLY

2.188,2.083 0.688,2.438 0.688,2.438 1.635,1.802 true 1.896,1.302 2.823,1.583 true 0.531,2.344 0.844,2.5 0.313,0.156 10 false *a 2.854,1.5 3.167,1.656 0.313,0.156 10 false *b

*a	Hook
*b	Guide

Attach the guide and hook and install the rear seat lock control lever sub-assembly RH to the rear seatback lock assembly RH.

Attach the guide and install the rear seatback lock assembly RH with the 3 bolts.

Torque:

18 N*m (184 kgf*cm, 13 ft.*lbf)

Install the 2 screws.

1.563,3.906 1.833,3.448 false 1.781,3.25 2.094,3.406 0.313,0.156 10 false *a 1.135,1.354 1.375,1.563 0.24,0.208 10 true (1) 0.76,1.281 1,1.49 0.24,0.208 10 true (2) 1.51,1.281 1.75,1.49 0.24,0.208 10 true (3) 2.031,1.24 2.271,1.448 0.24,0.208 10 true (4) 2,0.781 2.24,0.99 0.24,0.208 10 true (5) 1.896,0.427 2.135,0.635 0.24,0.208 10 true (6) 2.031,1.563 2.271,1.771 0.24,0.208 10 true (7) 2.021,1.906 2.26,2.115 0.24,0.208 10 true (8) 2.01,2.229 2.25,2.438 0.24,0.208 10 true (9) 0.156,2.24 0.469,2.469 0.313,0.229 10 true (15) 0.167,1.917 0.49,2.146 0.323,0.229 10 true (14) 0.156,1.542 0.448,1.771 0.292,0.229 10 true (13) 0.146,1.229 0.448,1.438 0.302,0.208 10 true (10) 0.219,0.802 0.521,1.031 0.302,0.229 10 true (11) 0.26,0.417 0.542,0.667 0.281,0.25 10 true (12)

*a	Hog Ring Pliers

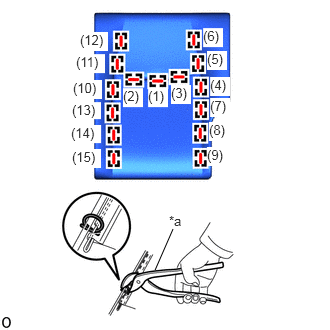

Using hog ring pliers, install the separate type rear seatback cover RH to the separate type rear seatback pad RH with 15 new hog rings in the order indicated in the illustration.

NOTICE:

·

Be careful not to damage the separate type rear seatback cover RH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover RH.

Attach the guide.

Pass the rear center seat outer belt assembly through the hole of separate type rear seatback cover with pad RH.

Attach the claw and install the 4 rear seat headrest supports.

Close the 2 fasteners.

Insert the 2 fasteners.

1.542,2.927 1.781,2.5 false 1.719,2.302 2.031,2.458 0.313,0.156 10 false *a

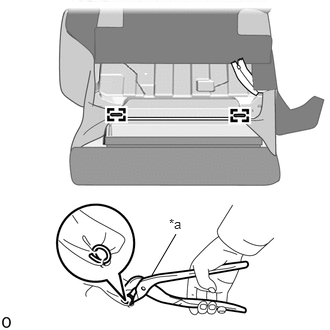

*a	Hog Ring Pliers

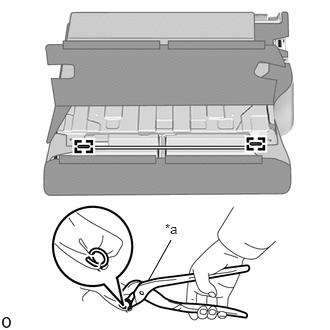

Using hog ring pliers, install 2 new hog rings.

NOTICE:

Be careful not to damage the separate type rear seatback cover RH.

Attach the hook.

0,0 0,0 false

Install in this Direction

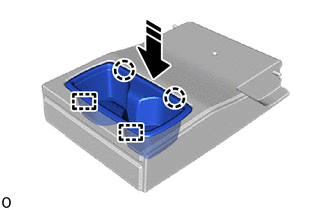

Attach the guide and claw and install the rear center seat armrest cup holder sub-assembly as shown in the illustration.

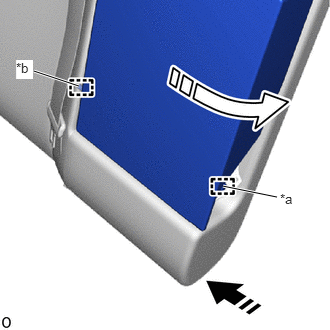

2.323,1.938 2.885,2.052 true 0.354,0.74 0.823,0.896 true 2.917,1.99 3.229,2.146 0.313,0.156 10 false *a 0.167,0.625 0.344,0.823 0.177,0.198 10 true *b

*a	Outside Location Pin
*b	Inside Location Pin
	Install in this Direction (1)
	Install in this Direction (2)

Attach the inside location pin in the installation direction (1) shown in the illustration.

Fold the rear center seat armrest assembly forward.

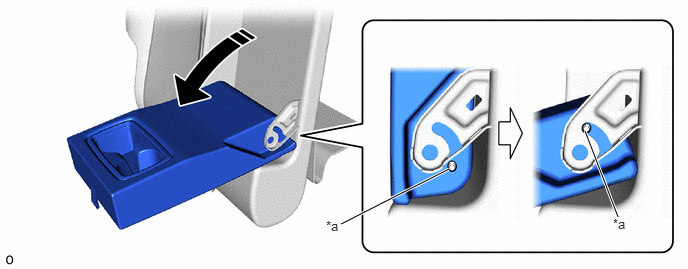

3.552,2.333 4.677,1.76 true 6.438,2.26 6.094,1.365 true 3.396,2.271 3.708,2.427 0.313,0.156 10 false *a 6.385,2.25 6.698,2.406 0.313,0.156 10 false *a

*a	Outside Location Pin	-	-
	Install in this Direction	-	-

2.385,1.427 2.99,1.25 false 3.021,1.135 3.333,1.292 0.313,0.156 10 false *a

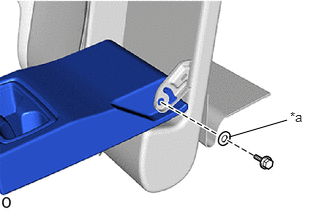

*a	Wave Washer

Install the rear center seat armrest assembly with the wave washer and bolt.

Torque:

18 N*m (184 kgf*cm, 13 ft.*lbf)

0,0 0,0 false

Install in this Direction

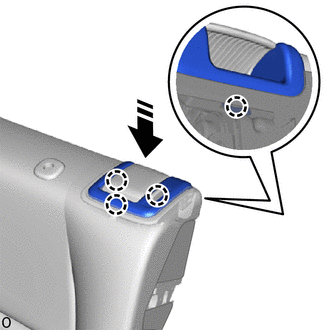

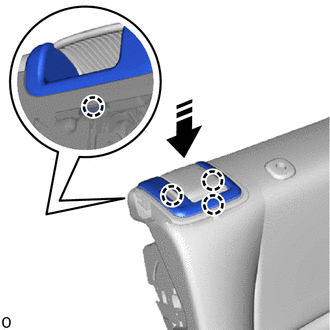

Attach the guide and claw and install the center armrest hinge cover as shown in the illustration.

0,0 0,0 false

Install in this Direction

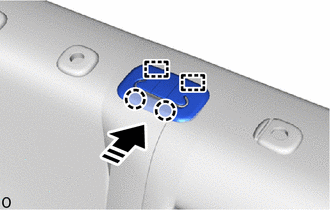

Attach the claw and install the rear upper seatback lock bezel RH as shown in the illustration.

0,0 0,0 false

Install in this Direction

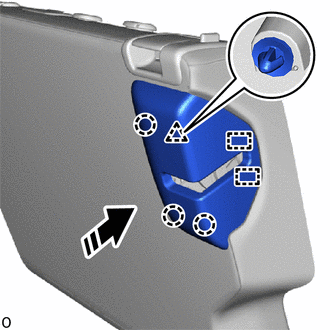

Attach the guide, claw and clip and install the rear lower seatback lock bezel RH as shown in the illustration.

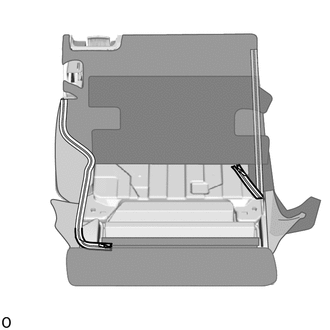

Pass the rear center seat outer belt assembly from the slit of rear seat shoulder belt cover.

0,0 0,0 false

Install in this Direction

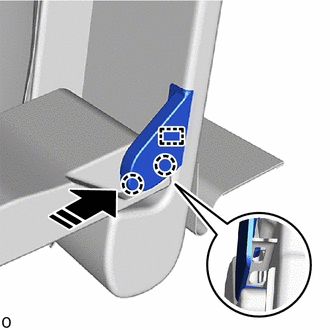

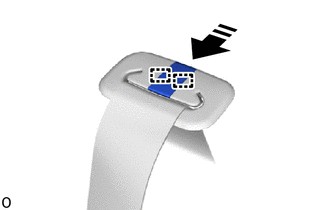

Attach the guide and install the seat belt anchor cover cap as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide and claw and install the rear seat shoulder belt cover as shown in the illustration.

2.188,2.083 0.688,2.438 0.688,2.438 1.635,1.802 true 1.896,1.302 2.823,1.583 true 0.531,2.344 0.844,2.5 0.313,0.156 10 false *a 2.854,1.5 3.167,1.656 0.313,0.156 10 false *b

*a	Hook
*b	Guide

Attach the guide and hook and install the rear seat lock control lever sub-assembly LH to the rear seatback lock assembly LH.

Attach the guide and install the rear seatback lock assembly LH with the 3 bolts.

Torque:

18 N*m (184 kgf*cm, 13 ft.*lbf)

Install the 2 screws.

1.615,2.813 1.802,2.385 false 1.542,0.917 1.75,1.115 0.208,0.198 10 true (1) 1.281,0.917 1.49,1.115 0.208,0.198 10 true (2) 1.781,0.885 1.99,1.083 0.208,0.198 10 true (3) 2.188,0.802 2.396,1 0.208,0.198 10 true (4) 2.156,0.531 2.365,0.729 0.208,0.198 10 true (5) 2.115,0.292 2.323,0.49 0.208,0.198 10 true (6) 2.188,1.021 2.396,1.219 0.208,0.198 10 true (7) 2.177,1.271 2.385,1.469 0.208,0.198 10 true (8) 2.156,1.531 2.365,1.729 0.208,0.198 10 true (9) 0.76,0.833 1.063,1.031 0.302,0.198 10 true (10) 0.792,0.563 1.094,0.76 0.302,0.198 10 true (11) 0.833,0.333 1.125,0.531 0.292,0.198 10 true (12) 0.75,1.063 1.052,1.24 0.302,0.177 10 true (13) 0.74,1.302 1.052,1.49 0.313,0.188 10 true (14) 0.75,1.552 1.052,1.75 0.302,0.198 10 true (15) 1.76,2.219 2.073,2.375 0.313,0.156 10 false *a

*a	Hog Ring Pliers

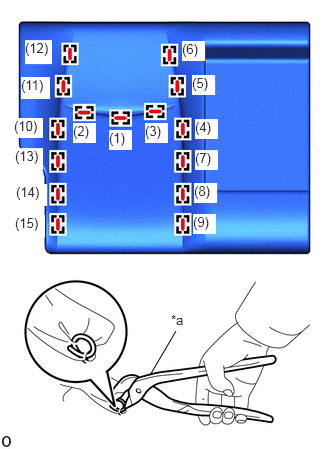

Using hog ring pliers, install the separate type rear seatback cover LH to the separate type rear seatback pad LH with 15 new hog rings in the order indicated in the illustration.

NOTICE:

·

Be careful not to damage the separate type rear seatback cover LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover LH.

Attach the claw and install the 2 rear seat headrest supports.

Close the 2 fasteners.

Insert the 2 fasteners.

1.583,2.865 1.833,2.438 false 1.76,2.25 2.073,2.406 0.313,0.156 10 false *a

*a	Hog Ring Pliers

Using hog ring pliers, install 2 new hog rings.

NOTICE:

Be careful not to damage the separate type rear seatback cover LH.

Attach the hook.

0,0 0,0 false

Install in this Direction

Attach the claw and install the rear upper seatback lock bezel LH as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide, claw and clip install the rear lower seatback lock bezel LH as shown in the illustration.

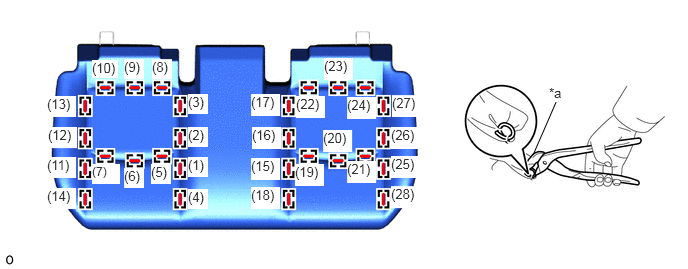

Using hog ring pliers, install the bench type rear seat cushion cover to the rear seat cushion pad with 28 new hog rings in the order indicated in the illustration.

5.552,1.615 5.792,1.063 false 5.719,0.885 6.031,1.042 0.313,0.156 10 false *a 1.958,0.979 2.167,1.188 0.208,0.208 10 true (3) 1.958,1.635 2.167,1.844 0.208,0.208 10 true (1) 1.958,1.323 2.167,1.531 0.208,0.208 10 true (2) 1.958,1.969 2.167,2.177 0.208,0.208 10 true (4) 2.625,1.323 2.927,1.552 0.302,0.229 10 true (16) 0.958,0.625 1.229,0.813 0.271,0.188 10 true (10) 1.292,0.615 1.5,0.823 0.208,0.208 10 true (9) 1.583,0.615 1.792,0.823 0.208,0.208 10 true (8) 1.573,1.708 1.781,1.917 0.208,0.208 10 true (5) 1.292,1.75 1.5,1.958 0.208,0.208 10 true (6) 0.958,1.708 1.25,1.917 0.292,0.208 9 true (7) 0.5,1.323 0.802,1.542 0.302,0.219 10 true (12) 0.49,1.635 0.792,1.854 0.302,0.219 10 true (11) 0.49,1 0.792,1.219 0.302,0.219 10 true (13) 0.49,1.958 0.792,2.177 0.302,0.219 10 true (14) 2.615,1.646 2.917,1.875 0.302,0.229 10 true (15) 2.615,1.948 2.917,2.177 0.302,0.229 10 true (18) 2.615,0.979 2.917,1.208 0.302,0.229 10 true (17) 3.073,1.708 3.375,1.938 0.302,0.229 10 true (19) 3.615,1.677 3.917,1.906 0.302,0.229 10 true (21) 3.365,1.354 3.667,1.583 0.302,0.229 10 true (20) 3.083,1 3.385,1.229 0.302,0.229 10 true (22) 3.615,1.01 3.917,1.24 0.302,0.229 10 true (24) 3.375,0.604 3.677,0.833 0.302,0.229 10 true (23) 4.083,0.99 4.385,1.219 0.302,0.229 10 true (27) 4.073,1.323 4.375,1.552 0.302,0.229 10 true (26) 4.073,1.625 4.375,1.854 0.302,0.229 10 true (25) 4.073,1.938 4.375,2.167 0.302,0.229 10 true (28)

*a

Hog Ring Pliers

-

-

NOTICE:

·

Be careful not to damage the bench type rear seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.

Attach the hook.

i.

for Gasoline Model:

ii.

for HV Model:
