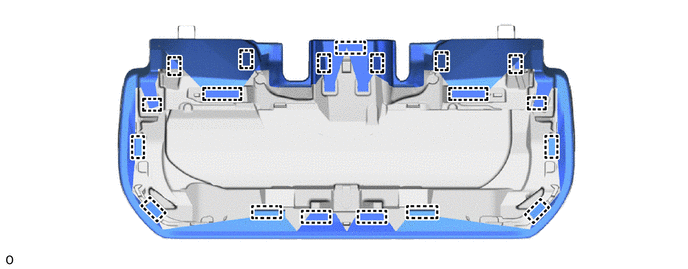

SEAT  REAR SEAT ASSEMBLY(for SFTM Made)  DISASSEMBLY

Detach the hook.

i.

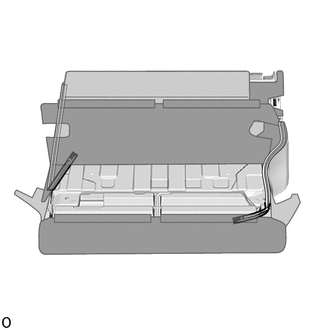

for Gasoline Model:

ii.

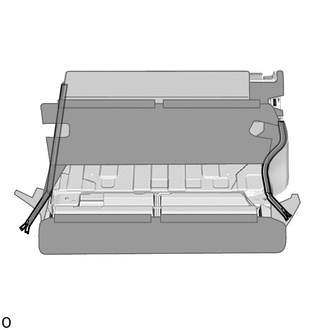

for HV Model:

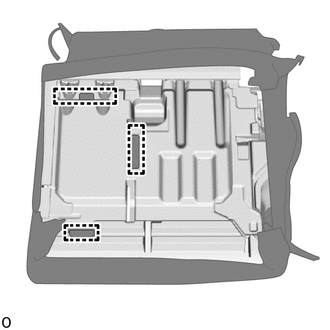

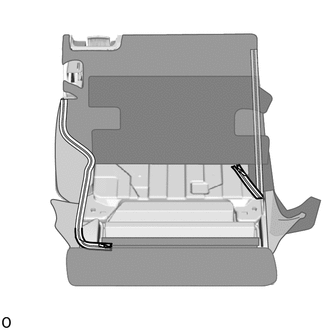

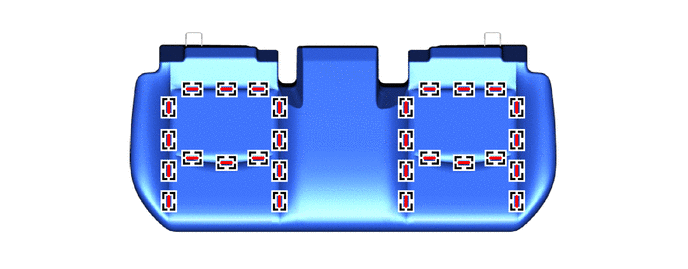

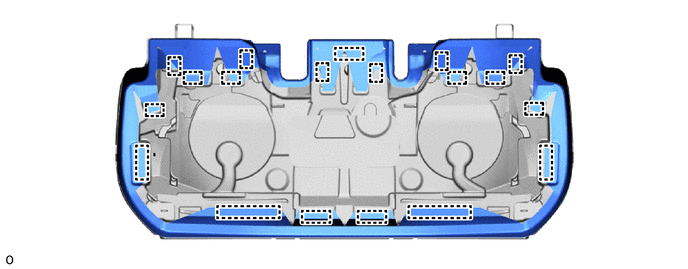

Remove the 28 hog rings and bench type rear seat cushion cover from the rear seat cushion pad as shown in the illustration.

NOTICE:

Be careful not to dirty or damage the bench type rear seat cushion cover.

0,0 0,0 false

Remove in this Direction

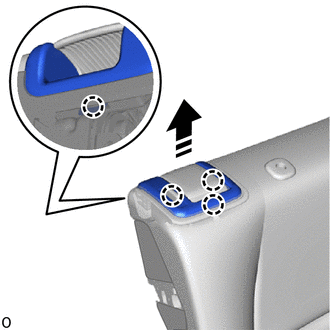

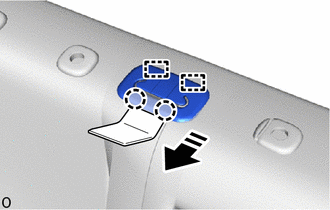

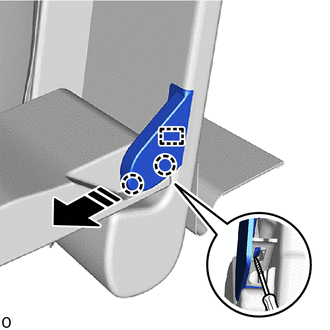

Using a moulding remover D, detach the claw and clip.

0,0 0,0 false

Remove in this Direction

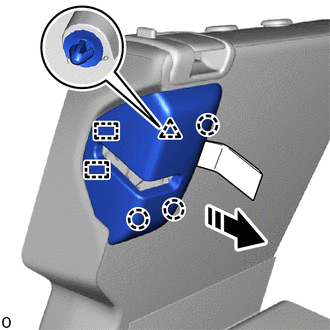

Detach the claw and remove the rear upper seatback lock bezel RH as shown in the illustration.

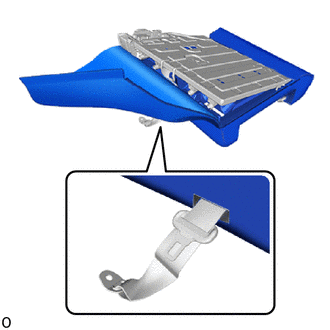

Detach the hook.

Remove the 2 hog rings.

0,0 0,0 false

Pull out the 2 fasteners.

Open the 2 fasteners.

Detach the claw and remove the 2 rear seat headrest supports.

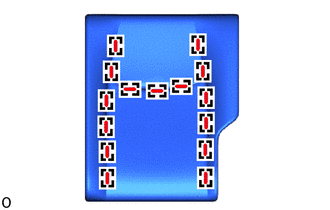

Remove the 15 hog rings and separate type rear seatback cover LH from the separate type rear seatback pad LH as shown in the illustration.

NOTICE:

Be careful not to dirty or damage the separate type rear seatback cover LH.

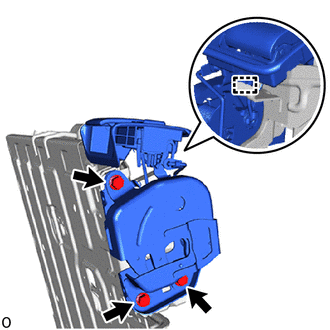

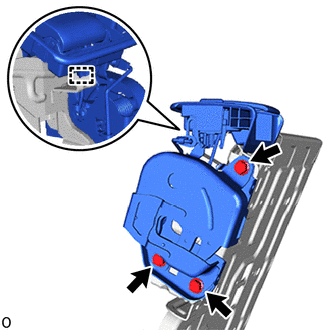

Remove the 2 screws.

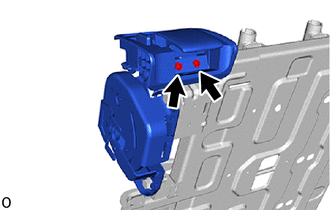

Remove the 3 bolts.

2.188,2.083 0.688,2.438 0.688,2.438 1.635,1.802 true 1.896,1.302 2.823,1.583 true 0.531,2.344 0.844,2.5 0.313,0.156 10 false *a 2.854,1.5 3.167,1.656 0.313,0.156 10 false *b

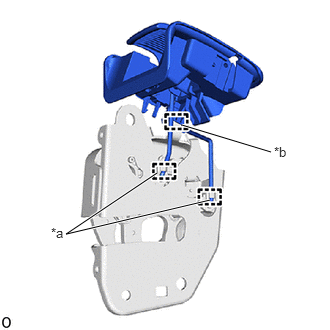

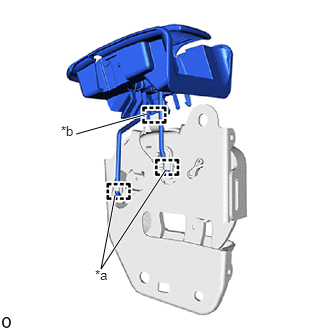

*a	Hook
*b	Guide

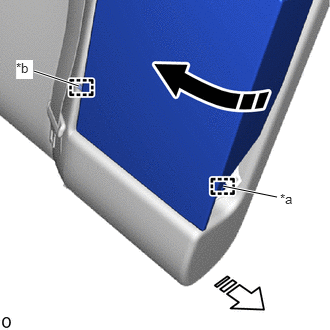

Detach the hook and guide and remove the rear seat lock control lever sub-assembly LH from the rear seatback lock assembly LH.

0,0 0,0 false

Remove in this Direction

Using a moulding remover D, detach the claw.

0,0 0,0 false

Remove in this Direction

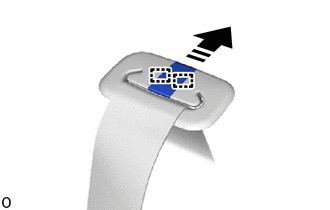

Detach the guide and remove the seat belt anchor cover cap as shown in the illustration.

Pass the rear center seat outer belt assembly from the slit and remove the rear seat shoulder belt cover.

0,0 0,0 false

Remove in this Direction

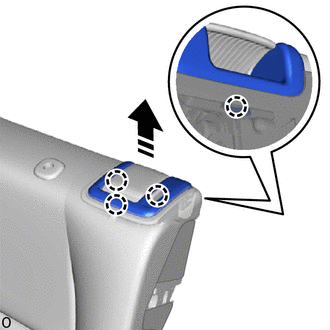

Using a moulding remover D, detach the claw and clip.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the rear upper seatback lock bezel RH as shown in the illustration.

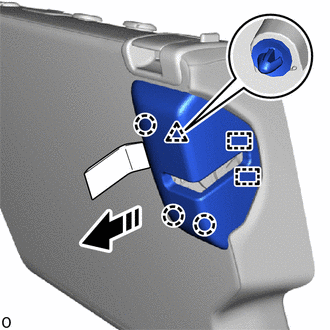

0,0 0,0 false

	Remove in this Direction
	Protective Tape

Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.

2.406,1.406 2.99,1.323 false 3.01,1.198 3.323,1.354 0.313,0.156 10 false *a

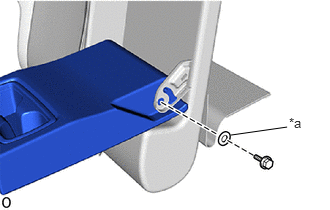

*a	Wave Washer

Remove the bolt and wave washer.

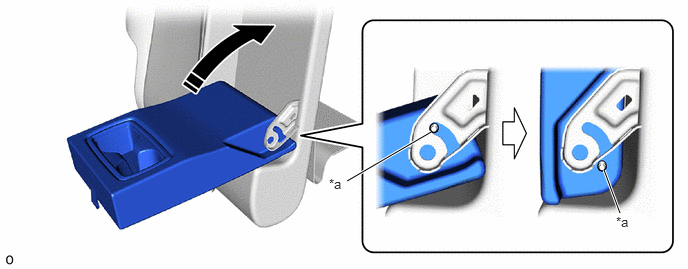

Return the rear center seat armrest assembly to rotate the outside location pin to the position as shown in the illustration.

3.615,1.885 4.49,1.375 true 6.458,2.219 6.292,1.771 true 3.427,1.833 3.604,2.021 0.177,0.188 10 false *a 6.417,2.229 6.604,2.417 0.188,0.188 10 true *a

*a	Outside Location Pin	-	-
	Remove in this Direction	-	-

2.323,1.938 2.885,2.052 true 0.354,0.74 0.823,0.896 true 2.917,1.99 3.229,2.146 0.313,0.156 10 false *a 0.167,0.625 0.344,0.823 0.177,0.198 10 true *b

*a	Outside Location Pin
*b	Inside Location Pin
	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the outside location pin in the removal direction (1) shown in the illustration.

0,0 0,0 false

Remove in this Direction

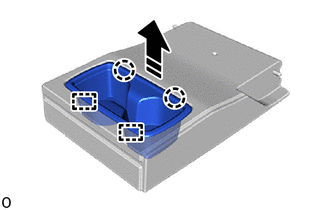

Detach the claw and guide and remove the rear center seat armrest cup holder sub-assembly as shown in the illustration.

Detach the hook.

Remove the 2 hog rings.

Pull out the 2 fasteners.

Open the 2 fasteners.

Detach the claw and remove the 4 rear seat headrest supports.

Pass the rear center seat outer belt assembly through the hole of separate type rear seatback cover with pad RH.

Detach the guide.

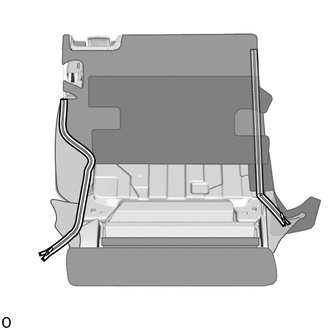

Remove the 15 hog rings and separate type rear seatback cover RH from the separate type rear seatback pad RH as shown in the illustration.

NOTICE:

Be careful not to dirty or damage the separate type rear seatback cover RH.

Remove the 2 screws.

Remove the 3 bolts.

1.198,2.031 1.052,2.802 1.052,2.802 1.719,1.781 true 0.792,1.396 1.531,1.188 true 0.99,2.781 1.302,2.938 0.313,0.156 10 false *a 0.635,1.281 0.948,1.438 0.313,0.156 10 false *b

*a	Hook
*b	Guide

Detach the hook and guide and remove the rear seat lock control lever sub-assembly RH from the rear seatback lock assembly RH.
