WIPER / WASHER  WIPER SWITCH  INSPECTION

1.594,1.885 0.625,1.75 true 1.594,2.01 0.604,1.969 true 1.615,2.125 2.115,2.479 true 1.656,2.25 2.104,2.792 true 1.49,0.292 1.656,0.292 1.656,0.292 1.656,0.823 true 1.958,0.292 1.792,0.292 1.792,0.292 1.792,0.823 true 2.781,1.323 2.385,1.323 2.385,1.323 2.115,1.052 true 0.729,1.313 1.104,1.313 1.104,1.313 1.354,1.063 true 2.365,1.51 2.177,1.51 2.177,1.51 1.948,1.063 true 1.063,1.458 1.25,1.458 1.25,1.458 1.5,1.073 true 1.917,1.51 1.792,1.51 1.792,1.51 1.792,1.083 true 1.219,1.615 1.51,1.615 1.51,1.615 1.635,1.073 true 2.25,1.021 2.76,1.021 true 0.813,0.74 1.292,0.74 1.292,0.74 1.354,0.823 true 0.823,0.531 1.323,0.531 1.323,0.531 1.5,0.823 true 0.104,0.042 0.417,0.24 0.313,0.198 10 false *a 0.417,1.667 0.729,1.865 0.313,0.198 10 false P4 0.417,1.906 0.729,2.104 0.313,0.198 10 false P3 2.188,2.458 2.5,2.656 0.313,0.198 10 false P2 2.083,2.823 2.396,3.021 0.313,0.198 10 false P1 1.365,0.219 1.677,0.417 0.313,0.198 10 false E 2.01,0.208 2.323,0.406 0.313,0.198 10 false VR 2.833,1.219 3.385,1.458 0.552,0.24 10 false W-OFF 2.417,1.406 3.063,1.656 0.646,0.25 10 false +1 1.958,1.438 2.604,1.719 0.646,0.281 10 false +2 1.031,1.531 1.677,1.781 0.646,0.25 10 false +S 0.698,1.375 1.344,1.625 0.646,0.25 10 false MIST 0.49,1.219 1.135,1.469 0.646,0.25 10 false WF 2.823,0.938 3.229,1.146 0.406,0.208 10 false WR 0.521,0.646 1.167,0.896 0.646,0.25 10 false C1R 0.521,0.448 1.167,0.698 0.646,0.25 10 false +1R

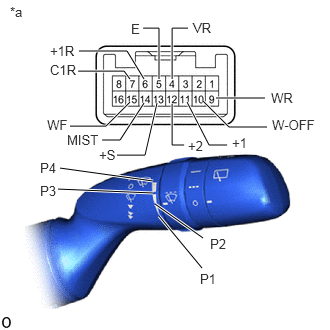

*a	Component without harness connected (Windshield Wiper Switch Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Front Wiper Switch

Tester Connection	Condition	Specified Condition
14 (MIST) - 5 (E)	MIST position	Below 1 Ω
	Except MIST position	10 kΩ or higher
10 (W-OFF) - 5 (E)	OFF position	Below 1 Ω
	Except OFF position	10 kΩ or higher
13 (+S) - 5 (E)	INT position	Below 1 Ω
	Except INT position	10 kΩ or higher
11 (+1) - 5 (E)	LO position	Below 1 Ω
	Except LO position	10 kΩ or higher
12 (+2) - 5 (E)	HI position	Below 1 Ω
	Except HI position	10 kΩ or higher

Front Washer Switch

Tester Connection	Condition	Specified Condition
15 (WF) - 5 (E)	ON position	Below 1 Ω
	OFF position	10 kΩ or higher

Intermittent Time Adjustment Switch *A

Tester Connection	Condition	Specified Condition
*A: w/ Intermittent Time Adjustment Switch
4 (VR) - 5 (E)	P1 position	1102 to 1218 Ω
	P2 position	570 to 630 Ω
	P3 position	256.5 to 283.5 Ω
	P4 position	Below 1 Ω

Rear Wiper Switch

Tester Connection	Condition	Specified Condition
6 (+1R) - 5 (E)	ON position	Below 1 Ω
7 (C1R) - 5 (E)	INT position	Below 1 Ω
6 (+1R) - 7 (C1R) - 5 (E)	OFF position	10 kΩ or higher

Rear Washer Switch

Tester Connection	Condition	Specified Condition
9 (WR) - 5 (E)	ON position	Below 1 Ω
	OFF position	10 kΩ or higher

If the result is not as specified, replace the windshield wiper switch assembly.
