RM36D0EC _51 Engine / Hybrid System _087039 M20C-FKS EMISSION CONTROL _0418182 PCV VALVE A

M20C-FKS EMISSION CONTROL PCV VALVE REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during PCV valve (ventilation valve sub-assembly) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of throttle body with motor assembly · Cleaning deposits from the throttle body with motor assembly · Replacement of EGR valve assembly · Gas leak from exhaust system is repaired	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202004,202304,_51,_087036,_0418131,RM100000001MIHP,202304,202405,_51,_087036,_0418131,RM1000000029CMT,202405,999999,_51,_087036,_0418131,RM100000002IF8T,)

NOTICE:: This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.; Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201910,999999,_V1,_083040,_0402303,RM100000001JHCH,

PROCEDURE

Hide Display 17111 1.REMOVE INTAKE MANIFOLD

Click hereEngine / Hybrid System>M20C-FKS (INTAKE / EXHAUST)>INTAKE MANIFOLD>REMOVAL202004,999999,_51,_087040,_0418092,RM100000001MI2V,

Hide Display 12204C 2.REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

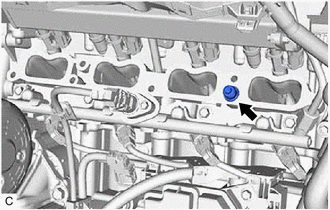

Remove the PCV valve (ventilation valve sub-assembly) from the cylinder head sub-assembly.
