M20C-FKS EMISSION CONTROL
_0418180
PURGE VALVE
K

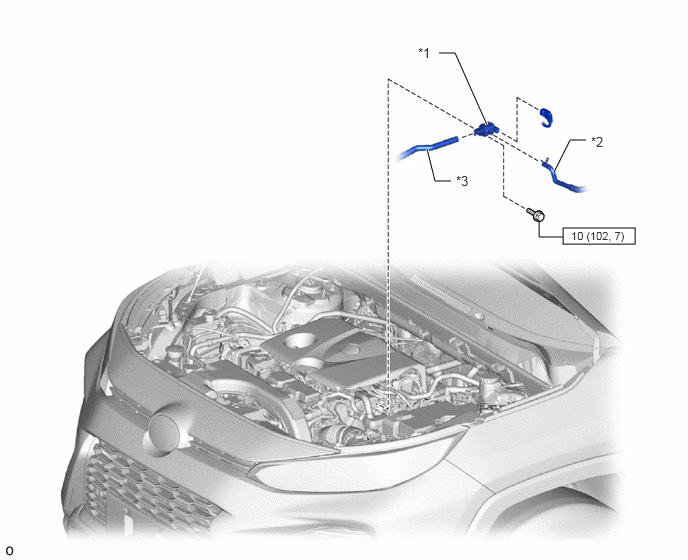

M20C-FKS EMISSION CONTROL PURGE VALVE COMPONENTS
ILLUSTRATION
5.865,2.375 6.615,2.542
0.75,0.167
4.573,0.552 4.74,0.552
4.74,0.552 5.073,1.302
true
5.615,2.302 5.615,2.469
5.615,2.469 5.865,2.469
false
5.771,1.792 5.938,1.458
5.938,1.458 6.104,1.458
true
4.448,1.552 4.531,1.885
4.531,1.885 4.698,1.885
true
4.354,0.469 4.604,0.635
0.25,0.167
10
false
*1
6.156,1.396 6.406,1.563
0.25,0.167
10
false
*2
4.75,1.802 5,1.969
0.25,0.167
10
false
*3
5.948,2.385 6.615,2.552
0.667,0.167
8
false
10 (102, 7)
| *1 | PURGE VALVE (PURGE VSV) | *2 | NO. 1 FUEL VAPOR FEED HOSE |
| *3 | NO. 2 FUEL VAPOR FEED HOSE | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
