M20C-FKS ENGINE CONTROL  CAMSHAFT POSITION SENSOR  COMPONENTS

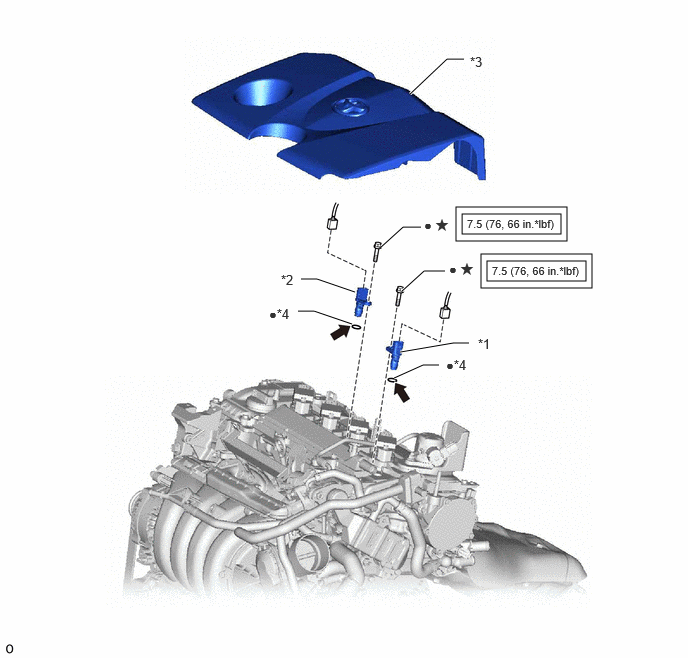

ILLUSTRATION

4.813,2.229 5.844,2.438 1.031,0.208 5.073,2.719 6.104,2.927 1.031,0.208 5.01,2.646 6.167,3 1.156,0.354 4.75,2.156 5.906,2.51 1.156,0.354 4.271,0.979 4.656,0.615 4.656,0.615 4.833,0.615 true 4.188,3.031 4.417,2.823 4.417,2.823 4.635,2.823 true 3.969,2.573 4.198,2.365 4.198,2.365 4.385,2.365 true 4.104,3.938 4.406,3.802 4.406,3.802 4.573,3.802 true 3.104,3.24 3.271,3.24 3.271,3.24 3.667,3.375 true 3.135,2.906 3.302,2.906 3.302,2.906 3.698,3.042 true 4.167,3.667 4.719,3.573 4.719,3.573 4.885,3.573 true 4.979,3.5 5.26,3.75 0.281,0.25 10 false *1 4.896,0.563 5.156,0.792 0.26,0.229 10 false *3 2.927,2.833 3.198,3.021 0.271,0.188 10 false *2 4.417,2.26 4.844,2.458 0.427,0.198 10 false ● ★ 4.865,2.26 5.938,2.49 1.073,0.229 8 false 7.5 (76, 66 in.*lbf) 4.677,2.719 5.104,2.917 0.427,0.198 10 false ● ★ 5.125,2.75 6.156,3.01 1.031,0.26 8 false 7.5 (76, 66 in.*lbf) 4.646,3.719 5,3.969 0.354,0.25 10 false ●*4 2.802,3.188 3.156,3.438 0.354,0.25 10 false ●*4

*1	CAMSHAFT POSITION SENSOR (for Intake Side)	*2	CAMSHAFT POSITION SENSOR (for Exhaust Side)
*3	NO. 1 ENGINE COVER SUB-ASSEMBLY	*4	O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part
	Engine Oil	★	Precoated part
