CAMSHAFT TIMING CONTROL MOTOR
K

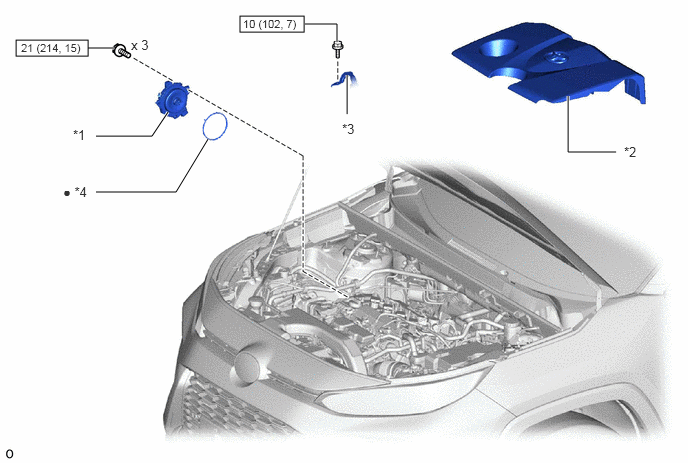

M20C-FKS ENGINE CONTROL CAMSHAFT TIMING CONTROL MOTOR COMPONENTS
ILLUSTRATION
0.167,0.417 0.917,0.583
0.75,0.167
2.5,0.167 3.167,0.333
0.667,0.167
0.917,0.5 1.188,0.5
true
1,1.417 1.583,1.417
1.583,1.417 1.75,1.167
true
1,2 1.833,2
1.833,2 2.167,1.448
true
6.417,1.583 5.917,1.583
5.917,1.583 5.917,1
true
3.177,0.25 3.51,0.25
3.51,0.25 3.51,0.438
true
3.615,0.781 3.615,1.188
true
0.76,1.323 1.01,1.49
0.25,0.167
10
false
*1
6.5,1.5 6.75,1.667
0.25,0.167
10
false
*2
0.656,1.917 1.073,2.083
0.417,0.167
10
false
● *4
1.365,0.385 1.667,0.635
0.302,0.25
10
false
x 3
0.219,0.427 0.969,0.594
0.75,0.167
8
false
21 (214, 15)
3.563,1.26 3.875,1.448
0.313,0.188
10
false
*3
2.531,0.177 3.198,0.344
0.667,0.167
8
false
10 (102, 7)
| *1 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | NO. 2 GROUND WIRE | *4 | CAMSHAFT TIMING CONTROL MOTOR O-RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
