RM36D0EC _51 Engine / Hybrid System _087036 M20C-FKS ENGINE CONTROL _0418134 CAMSHAFT OIL CONTROL SOLENOID A

M20C-FKS ENGINE CONTROL  CAMSHAFT OIL CONTROL SOLENOID  REMOVAL


CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 15370 2.REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

a.

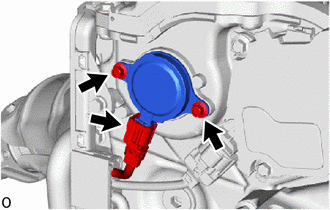

A426534

Disconnect the cam timing oil control solenoid assembly connector.


b.

Remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.

NOTICE:

If the cam timing oil control solenoid assembly has been struck or dropped, replace it.



c.
A427588

Remove the O-ring from the cam timing oil control solenoid assembly.

NOTICE:
·

When removing the O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.

·

If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.



HINT:

Perform this procedure only when replacement of the O-ring is necessary.
