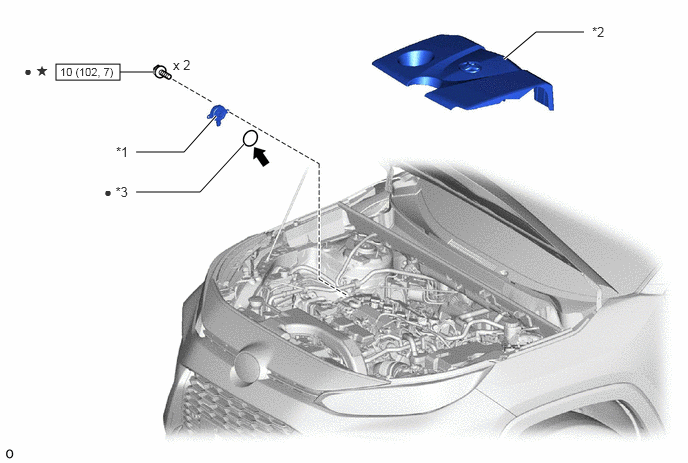

M20C-FKS ENGINE CONTROL  CAMSHAFT OIL CONTROL SOLENOID  COMPONENTS

ILLUSTRATION

0.583,0.667 1.25,0.833 0.667,0.167 1.417,1.583 1.917,1.583 1.917,1.583 2.25,1.208 true 1.417,2 2.083,2 2.083,2 2.542,1.5 true 1.25,0.75 1.615,0.75 true 5.25,0.615 5.583,0.333 5.583,0.333 6.083,0.333 true 1.208,1.5 1.458,1.667 0.25,0.167 10 false *1 6.167,0.25 6.417,0.417 0.25,0.167 10 false *2 1.083,1.917 1.417,2.083 0.333,0.167 10 false ● *3 1.802,0.594 2.083,0.833 0.281,0.24 10 false x 2 0.25,0.656 0.583,0.823 0.333,0.167 10 false ● ★ 0.625,0.677 1.302,0.844 0.677,0.167 8 false 10 (102, 7)

*1	CAM TIMING OIL CONTROL SOLENOID ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	O-RING	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
	Engine oil	★	Precoated part
