RM36D0EC _51 Engine / Hybrid System _087036 M20C-FKS ENGINE CONTROL _0418131 SFI SYSTEM C

M20C-FKS ENGINE CONTROL  SFI SYSTEM  P045500  Evaporative Emission System Leak Detected (Large Leak)  P045600  Evaporative Emission System Leak Detected (Very Small Leak)


DTC SUMMARY

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P045500 Evaporative Emission System Leak Detected (Large Leak) Leak detection pump creates negative pressure (vacuum) in EVAP system and EVAP system pressure is measured. Reference pressure is measured at start and end of leak check.
If stabilized pressure is higher than [second reference pressure x 0.2], ECM determines that EVAP system has a large leak.
·

Fuel tank cap (loose)

·

Leakage from EVAP line (canister - fuel tank)

·

Leakage from EVAP line (purge VSV - canister)

·

Leakage from canister pump module

·

Leakage from fuel tank

·

Leakage from canister


Comes on DTC stored SAE: P0455
P045600 Evaporative Emission System Leak Detected (Very Small Leak) Leak detection pump creates negative pressure (vacuum) in EVAP system and EVAP system pressure is measured. Reference pressure measured at start and end of leak check.
If stabilized pressure is higher than second reference pressure, ECM determines that EVAP system has a small leak.
·

Fuel tank cap (loose)

·

Leakage from EVAP line (canister - fuel tank)

·

Leakage from EVAP line (purge VSV - canister)

·

Leakage from canister pump module

·

Leakage from fuel tank

·

Leakage from canister


Comes on DTC stored SAE: P0456

DTC No. Monitoring Item Detection Timing Detection Logic SAE
P045500 EVAP gross leak EVAP monitoring
(ignition switch off)
2 trip P0455
P045600 EVAP small leak P0456

MONITOR DESCRIPTION

5 hours* after the ignition switch is turned off, the leak detection pump creates negative pressure (vacuum) in the EVAP (Evaporative Emission) system. The ECM monitors for leaks and actuator malfunctions based on the EVAP pressure.

HINT:

*: If the engine coolant temperature is not less than 35°C (95°F) 5 hours after the ignition switch is turned off, the monitor check starts 2 hours later. If it is still not less than 35°C (95°F) 7 hours after the ignition switch is turned off, the monitor check starts 2.5 hours later.


Sequence Operation Description Duration
- ECM activation Activated by soak timer 5, 7 or 9.5 hours after ignition switch turned off. -
A Atmospheric pressure measurement Vent valve is turned off (vent) and EVAP system pressure is measured by ECM in order to register atmospheric pressure.
If pressure in EVAP system is not between 70 to 110 kPa(abs) [10.15 to 15.95 psi(abs)], ECM cancels EVAP system monitor.
60 seconds
B First reference pressure measurement In order to determine reference pressure, leak detection pump creates negative pressure (vacuum) through reference orifice and then ECM checks if leak detection pump and vent valve operate normally. 360 seconds
C EVAP system pressure measurement Vent valve is turned on (closed) to shut EVAP system.
Negative pressure (vacuum) is created in EVAP system, and EVAP system pressure is then measured.
Write down measured value as it will be used in leak check. If EVAP pressure does not stabilize within 15 minutes, ECM cancels EVAP system monitor.
15 minutes*
D Purge VSV monitor Purge VSV is opened and then EVAP system pressure is measured by ECM.
Large increase indicates normal.
10 seconds
E Second reference pressure measurement After second reference pressure measurement, leak check is performed by comparing first and second reference pressure measurements.
If stabilized system pressure is higher than second reference pressure, ECM determines that EVAP system is leaking.
60 seconds
- Final check Atmospheric pressure is measured and then monitoring result is recorded by ECM. -

*: If only a small amount of fuel is in the fuel tank, it takes longer for the EVAP pressure to stabilize.

A373424C01
1.229,0.573 1.333,0.167 1.333,0.167 1.5,0.167 true 1.625,0.719 1.667,0.344 1.667,0.344 1.833,0.344 true 2.458,0.74 2.656,0.5 2.656,0.5 2.823,0.5 true 1.75,1.49 2.167,1.073 2.167,1.073 2.5,1.073 true 2.417,1.583 2.615,1.344 2.615,1.344 2.781,1.344 true 2.875,1.969 3.083,1.833 3.083,1.833 3.25,1.833 true 0.74,1.875 0.906,1.875 0.906,1.875 1.156,1.625 true 0.667,2.25 0.833,2.25 0.833,2.25 1.521,1.854 true 1.927,2.354 1.76,2.354 1.76,2.354 1.625,2.104 true 1.229,2.938 1.417,2.667 1.417,2.667 1.583,2.667 true 1.896,3.885 2.167,3.51 2.167,3.51 2.5,3.51 true 5.25,0.573 5.354,0.167 5.354,0.167 5.521,0.167 true 5.792,1.49 6.208,1.073 6.208,1.073 6.542,1.073 true 5.948,2.365 5.781,2.365 5.781,2.365 5.646,2.115 true 5.208,2.948 5.396,2.677 5.396,2.677 5.563,2.677 true 5.844,3.885 6.115,3.51 6.115,3.51 6.448,3.51 true 0.833,4.333 1.573,4.438 true 4.802,4.333 5.542,4.438 true 0.365,0.135 0.677,0.333 0.313,0.198 10 false *a 1.521,0.083 1.833,0.281 0.313,0.198 10 false *1 1.854,0.26 2.167,0.458 0.313,0.198 10 false *9 2.854,0.417 3.167,0.615 0.313,0.198 10 false *10 2.521,1 2.833,1.198 0.313,0.198 10 false *3 2.802,1.271 3.115,1.469 0.313,0.198 10 false *11 3.271,1.74 3.583,1.938 0.313,0.198 10 false *12 0.594,1.802 0.906,2 0.313,0.198 10 false *7 0.521,2.177 0.833,2.375 0.313,0.198 10 false *8 1.938,2.271 2.25,2.469 0.313,0.198 10 false *5 1.594,2.583 1.906,2.781 0.313,0.198 10 false *1 2.521,3.427 2.833,3.625 0.313,0.198 10 false *4 0.677,4.25 1.042,4.427 0.365,0.177 10 false *6 0.365,2.552 0.677,2.75 0.313,0.198 10 false *c 4.375,0.135 4.688,0.333 0.313,0.198 10 false *b 4.385,2.552 4.698,2.75 0.313,0.198 10 false *d 3.604,3.281 3.917,3.479 0.313,0.198 10 false *e 3.615,3.677 3.927,3.875 0.313,0.198 10 false *f 5.542,0.083 5.854,0.281 0.313,0.198 10 false *1 6.563,0.99 6.875,1.188 0.313,0.198 10 false *3 5.958,2.281 6.271,2.479 0.313,0.198 10 false *6 5.583,2.594 5.896,2.792 0.313,0.198 10 false *2 6.469,3.438 6.781,3.635 0.313,0.198 10 false *4 4.646,4.25 5.01,4.427 0.365,0.177 10 false *6
*1 Purge VSV: Off (Closed) *2 Purge VSV: On (Open)
*3 Vent Valve: Off (Vent) *4 Vent Valve: On (Closed)
*5 Leak Detection Pump: Off *6 Leak Detection Pump: On
*7 Reference Orifice (0.02 inch) *8 Canister Pressure Sensor
*9 Canister *10 Fuel Tank
*11 Canister Pump Module *12 Canister Filter
*a Operation A:
Atmospheric Pressure Measurement
*b Operation B, E:
Reference Pressure Measurement
*c Operation C:
EVAP System Pressure Measurement
*d Operation D:
Purge VSV Monitor
*e Atmospheric Pressure *f Negative Pressure


(a) P045500: EVAP (Evaporative Emission) gross leak

In operation C, the leak detection pump creates negative pressure (vacuum) in the EVAP system and the EVAP system pressure is measured. If the stabilized system pressure is higher than [second reference pressure x 0.2] (near atmospheric pressure), the ECM determines that the EVAP system has a large leak, illuminates the MIL and stores this DTC (2 trip detection logic).

(b) P045600: EVAP very small leak

In operation C, the leak detection pump creates negative pressure (vacuum) in the EVAP system and the EVAP system pressure is measured. If the stabilized system pressure is higher than second reference pressure, the ECM determines that the EVAP system has a small leak, illuminates the MIL and stores this DTC (2 trip detection logic).

A283588E07

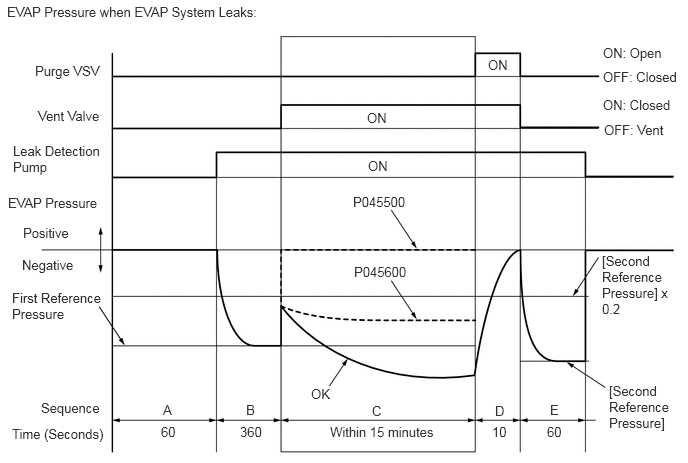

0.073,0.042 2.833,0.271 2.76,0.229 10 false EVAP Pressure when EVAP System Leaks: 0.365,0.656 1.167,0.917 0.802,0.26 10 false Purge VSV 0.396,1.125 1.167,1.396 0.771,0.271 10 false Vent Valve 0.135,1.49 1.104,1.927 0.969,0.438 10 false Leak Detection Pump 0.083,2.031 1.167,2.25 1.083,0.219 10 false EVAP Pressure 0.24,2.344 0.823,2.583 0.583,0.24 10 false Positive 0.229,2.677 0.813,2.917 0.583,0.24 10 false Negative 0.125,3.021 1.104,3.469 0.979,0.448 10 false First Reference Pressure 0.427,4.167 1.167,4.396 0.74,0.229 10 false Sequence 0.125,4.438 1.167,4.688 1.042,0.25 10 false Time (Seconds) 1.698,4.188 1.917,4.417 0.219,0.229 10 false A 2.563,4.188 2.75,4.417 0.188,0.229 10 false B 3.875,4.198 4.083,4.417 0.208,0.219 10 false C 5.156,4.198 5.333,4.417 0.177,0.219 10 false D 5.729,4.188 5.917,4.417 0.188,0.229 10 false E 1.677,4.417 1.917,4.604 0.24,0.188 10 false 60 5.698,4.417 5.917,4.583 0.219,0.167 10 false 60 5.125,4.417 5.333,4.583 0.208,0.167 10 false 10 2.5,4.417 2.833,4.667 0.333,0.25 10 false 360 3.438,4.417 4.667,4.667 1.229,0.25 10 false Within 15 minutes 3.24,4.021 3.5,4.25 0.26,0.229 10 false OK 3.688,2.75 4.594,3 0.906,0.25 10 false P045600 3.677,2.021 4.323,2.24 0.646,0.219 10 false P045500 3.833,1.646 4.167,1.833 0.333,0.188 10 false ON 3.823,1.146 4.083,1.333 0.26,0.188 10 false ON 5.083,0.594 5.417,0.833 0.333,0.24 10 false ON 6.281,0.469 7,0.656 0.719,0.188 10 false ON: Open 6.281,0.719 7.156,0.917 0.875,0.198 10 false OFF: Closed 6.281,1.01 7.083,1.25 0.802,0.24 10 false ON: Closed 6.292,1.271 7,1.51 0.708,0.24 10 false OFF: Vent 6.271,2.635 7.063,3.406 0.792,0.771 10 false [Second Reference Pressure] x 0.2 6.344,3.99 6.979,4.656 0.635,0.667 10 false [Second Reference Pressure]


MONITOR STRATEGY

Required Sensors/Components Purge VSV
Canister pump module
Frequency of Operation Once per driving cycle

CONFIRMATION DRIVING PATTERN

NOTICE:
·

The Evaporative System Check (Automatic Mode) consists of 6 steps performed automatically by the GTS. It takes a maximum of approximately 24 minutes.

·

Do not perform the Evaporative System Check when the fuel tank is higher than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.

·

Do not run the engine during this operation.

·

When the temperature of the fuel is 35°C (95°F) or higher, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the fuel temperature less than 35°C (95°F).



HINT:


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Enter the following menus: Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode [B].

9.

After the Evaporative System Check is completed, check for All Readiness by entering the following menus: Powertrain / Engine / Utility / All Readiness.

10.

Input the DTC: P045500 or P045600.

11.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

[A] to [B]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
