EXTERIOR PANELS / TRIM  REAR DOOR OUTSIDE MOULDING  DISASSEMBLY

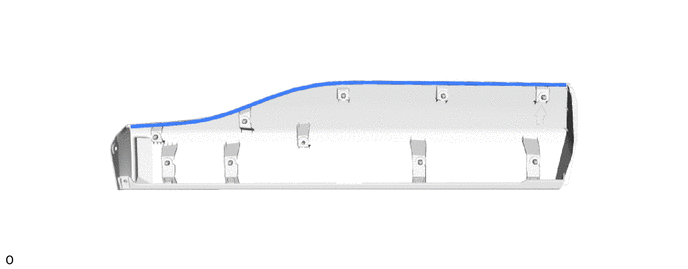

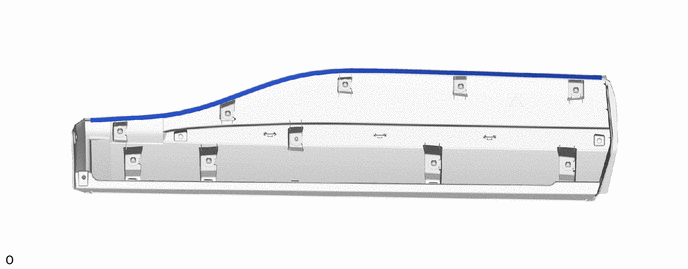

75797C 1.REMOVE REAR DOOR UPPER OUTSIDE MOULDING PAD

a.

for Type A:

i.

Remove the rear door upper outside moulding pad.

b.

for Type B:

i.

Remove the rear door upper outside moulding pad.

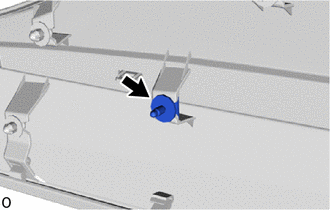

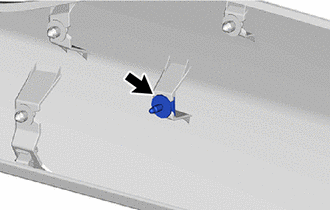

75392B 2.REMOVE NO. 1 OUTSIDE MOULDING RETAINER

a.

for Type A:

i.

Remove the No. 1 outside moulding retainer.

b.

for Type B:

i.

Remove the No. 1 outside moulding retainer.

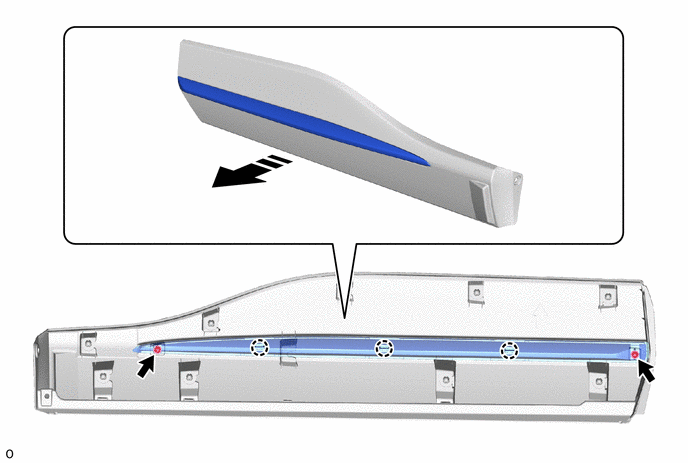

75744 3.REMOVE REAR DOOR REAR UPPER OUTSIDE MOULDING LH (for Type B)

a.

Remove the 2 screws.

0,0 0,0 false

Remove in this Direction

-

-

b.

Detach the claw and remove the rear door rear upper outside moulding LH.

75768B 4.REMOVE REAR DOOR MOULDING PAD LH

a.

Remove the rear door moulding pad LH.

75798B 5.REMOVE REAR DOOR REAR OUTSIDE MOULDING PAD

a.

Remove the rear door rear outside moulding pad.
