EXTERIOR PANELS / TRIM  FRONT DOOR OUTSIDE MOULDING  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 75793 1.REMOVE FRONT DOOR UPPER OUTSIDE MOULDING PAD

HINT:

When removing the front door upper outside moulding pad, if it is difficult to remove, heat the adhesive of the front door upper outside moulding pad and front door lower outside moulding sub-assembly LH using a heat light.


Standard:
Item Temperature
Front Door Lower Outside Moulding Sub-assembly LH 40 to 60°C (104 to 140°F)
Front Door Upper Outside Moulding Pad 40 to 60°C (104 to 140°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat front door lower outside moulding sub-assembly LH and front door upper outside moulding pad excessively.


a.

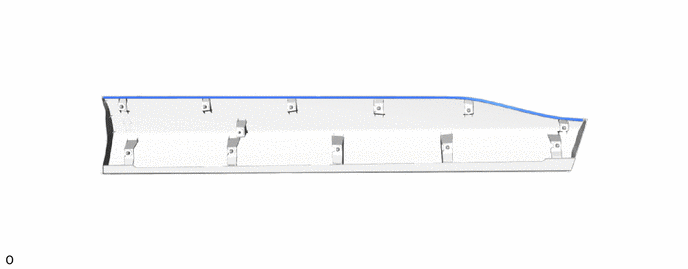

for Type A:

i.

Remove the front door upper outside moulding pad.

B523501



b.

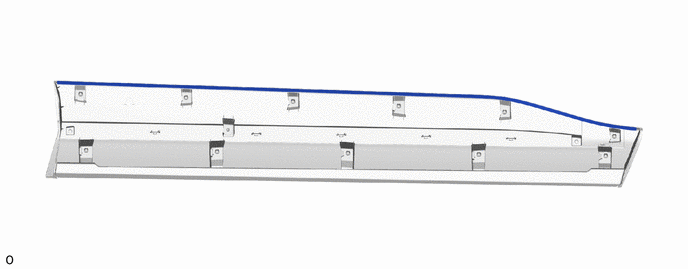

for Type B:

i.

Remove the front door upper outside moulding pad.

B571319



Hide 75392A 2.REMOVE NO. 1 OUTSIDE MOULDING RETAINER

a.

for Type A:

i.
B525917

Remove the No. 1 outside moulding retainer.



b.

for Type B:

i.
B571320

Remove the No. 1 outside moulding retainer.

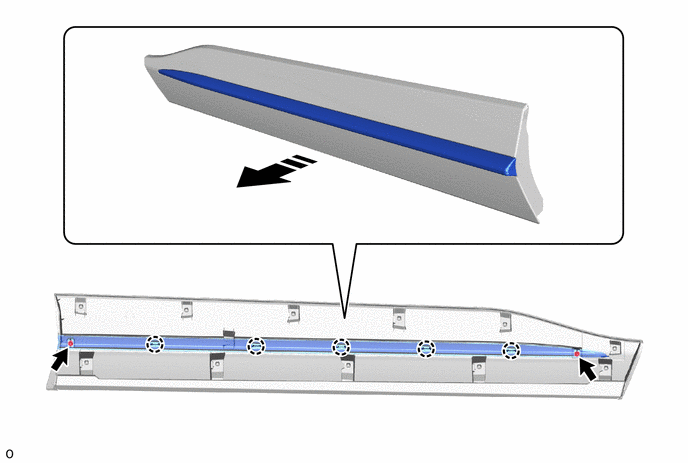

Hide 75734D 3.REMOVE FRONT DOOR REAR UPPER OUTSIDE MOULDING LH (for Type B)

a.

Remove the 2 screws.

B571321
0,0 0,0 false
V113147

Remove in this Direction - -



b.

Detach the claw and remove the front door rear upper outside moulding LH.
