RM36D0EC _58 Vehicle Interior _083104 HEATING / AIR CONDITIONING _0417476 COMPRESSOR(for M20C-FKS) A

HEATING / AIR CONDITIONING  COMPRESSOR(for M20C-FKS)  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

The recommended compressor oil listed on the compressor assembly and on the engine hood may differ. Make sure to use the compressor oil listed on the engine hood.


PROCEDURE

Hide 1.ADJUST COMPRESSOR OIL

a.

When replacing the compressor assembly with pulley with a new one, gradually discharge the inert gas (helium) from the service valve, and drain the following amount of oil before installation.

NOTICE:
·

If a new compressor assembly with pulley is installed without removing the same amount of compressor oil as is remaining in the pipes, the amount of compressor oil will be excessive. This prevents heat exchange in the refrigerant cycle and will cause the air conditioning system to malfunction.

·

A certain amount of compressor oil remains in the compressor assembly with pulley during circulation and the compressor may be damaged if the amount of compressor oil is more/less than this amount. Therefore, make sure to adjust the amount of compressor oil correctly.

·

If the amount of compressor oil remaining in the removed compressor assembly with pulley is excessively low, check for compressor oil leaks.

·

for HFC-134a (R134a): Make sure to use ND-OIL 8 or equivalent compressor oil.




b.

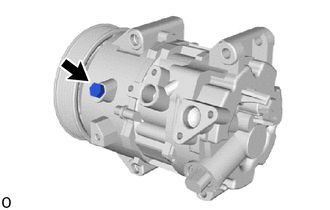

E414054

Remove the drain bolt (seal washer) from the removed compressor assembly with pulley.


c.

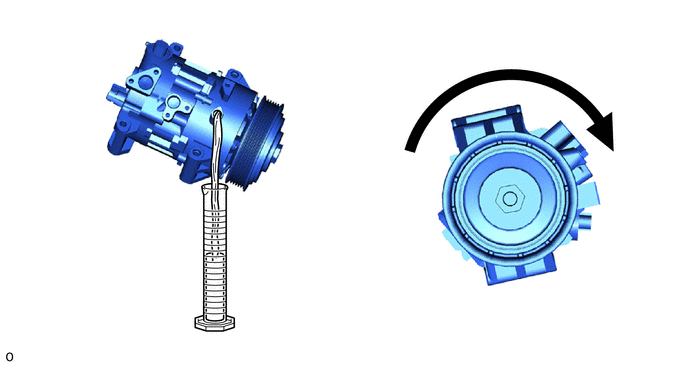

Drain the compressor oil from the oil port of the removed compressor assembly with pulley as shown in the illustration.

NOTICE:

Make sure to drain the compressor oil from the oil port.


E414055
2.292,1.177 3.375,1.177 true 3.406,1.073 3.719,1.229 0.313,0.156 10 false *a
*a Oil Port - -
V100135

Turn Clockwise - -



d.
E414054

Remove the drain bolt (seal washer) from a new compressor assembly with pulley.

HINT:

The drain bolt (seal washer) can be reused.



e.

Drain the following amount of compressor oil from the oil port of the new compressor assembly with pulley as shown in the illustration.

Standard:

(The amount of oil in a new compressor assembly with pulley: 70 (+15) cc (2.37 (+0.51) fl.oz)) - (The amount of oil in the removed compressor assembly with pulley) = (The amount of oil to be removed from the new compressor assembly with pulley)


NOTICE:
·

Make sure to drain the compressor oil from the oil port.

·

Make sure to add the compressor oil from the oil port, not from the discharge or intake port.

·

If a tool is used to add compressor oil to the new compressor assembly with pulley, make sure that it is free of foreign matter.

·

If the amount of compressor oil remaining in the removed compressor assembly with pulley cannot be estimated because the compressor was damaged and oil was discharged due to a frontal collision, etc., install a new compressor assembly with pulley without removing any oil. If the cooler condenser assembly is also replaced, do not add the specified amount of compressor oil for cooler condenser assembly replacement (40 cc (1.35 fl.oz)).



E414055
2.292,1.177 3.375,1.177 true 3.406,1.073 3.719,1.229 0.313,0.156 10 false *a
*a Oil Port - -
V100135

Turn Clockwise - -



f.

Install the drain bolt (seal washer) to the new compressor assembly with pulley.

Torque:
30 N*m (306 kgf*cm, 22 ft.*lbf)

NOTICE:

Make sure that there is no damage or foreign matter on the seal washer edge.



Hide 88310 2.INSTALL COMPRESSOR ASSEMBLY WITH PULLEY

a.

for Type A:

i.
E406607C01
0,0 0,0 false
V100135

Bolt
V100136

Stud Bolt


Using an E8 "TORX" socket wrench, temporarily install the compressor assembly with pulley with the 2 stud bolts and 2 bolts.

Torque:
Stud Bolt : 5.0 N*m (51 kgf*cm, 44 in.*lbf)


ii.

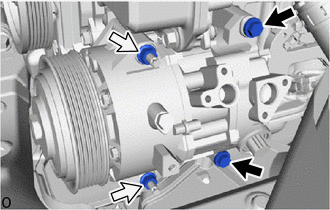

E406608
2.76,1.708 2.854,1.885 0.094,0.177 10 true 1 3.094,0.042 3.188,0.219 0.094,0.177 10 true 2 1.01,0.25 1.104,0.427 0.094,0.177 10 true 3 1.021,1.969 1.115,2.146 0.094,0.177 10 true 4
V100135

Bolt
V100136

Nut


Install the compressor assembly with pulley with the 2 bolts and 2 nuts.

Torque:
24.5 N*m (250 kgf*cm, 18 ft.*lbf)

HINT:

Tighten the bolts and nuts in the order shown in the illustration, or temporarily install 1 of them, and then tighten them in the order 2, 4, 1 and 3.




b.

for Type B:

i.
E414052

Temporarily install the compressor assembly with pulley with the 4 bolts.


ii.

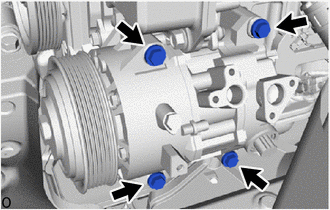

E414053
2.813,1.854 2.906,2.031 0.094,0.177 10 true 1 3.229,0.115 3.323,0.292 0.094,0.177 10 true 2 1.083,0.156 1.177,0.333 0.094,0.177 10 true 3 1.031,1.948 1.125,2.125 0.094,0.177 10 true 4

Install the compressor assembly with pulley with the 4 bolts.

Torque:
24.5 N*m (250 kgf*cm, 18 ft.*lbf)

HINT:

Tighten the bolts in the order shown in the illustration, or temporarily install 1 of them, and then tighten them in the order 2, 4, 1 and 3.




c.
E406605

Connect the connector.


Hide 88711 3.CONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

a.

Remove the vinyl tape wrapped around the connection of the No. 1 cooler refrigerant discharge hose and No. 1 cooler refrigerant discharge hose.


b.

Sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor assembly with pulley.

Compressor Oil:

ND-OIL 8 or equivalent



c.

Install the O-ring to the No. 1 cooler refrigerant discharge hose.

NOTICE:

Keep the O-ring and O-ring fitting surface free of foreign matter.



d.
E406604

Connect the No. 1 cooler refrigerant discharge hose with the bolt.

Torque:
9.8 N*m (100 kgf*cm, 87 in.*lbf)

NOTICE:
·

Do not apply excessive force to the No. 1 cooler refrigerant discharge hose.

·

Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)




Hide 88704 4.CONNECT SUCTION HOSE SUB-ASSEMBLY

a.

Remove the vinyl tape wrapped around the connection of the suction hose sub-assembly and suction hose sub-assembly.


b.

Sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor assembly with pulley.

Compressor Oil:

ND-OIL 8 or equivalent



c.

Install the O-ring to the suction hose sub-assembly.

NOTICE:

Keep the O-ring and O-ring fitting surface free of foreign matter.



d.
E406603

Connect the suction hose sub-assembly to the compressor assembly with pulley with the bolt.

Torque:
9.8 N*m (100 kgf*cm, 87 in.*lbf)

NOTICE:
·

Do not apply excessive force to the suction hose sub-assembly.

·

Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)
