DOOR / HATCH  HOOD LOCK CONTROL CABLE ASSEMBLY  INSTALLATION

1.896,1.135 2.396,1.135 true 1.729,1.083 2.042,1.323 0.313,0.24 10 false *a

*a

String

Tie a string to the end of the hood lock control cable assembly in the engine room.

0,0 0,0 false

Install in this Direction

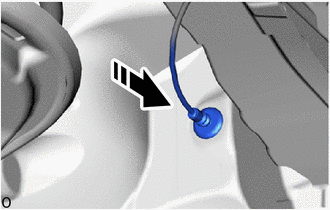

Install the grommet as shown in the illustration.

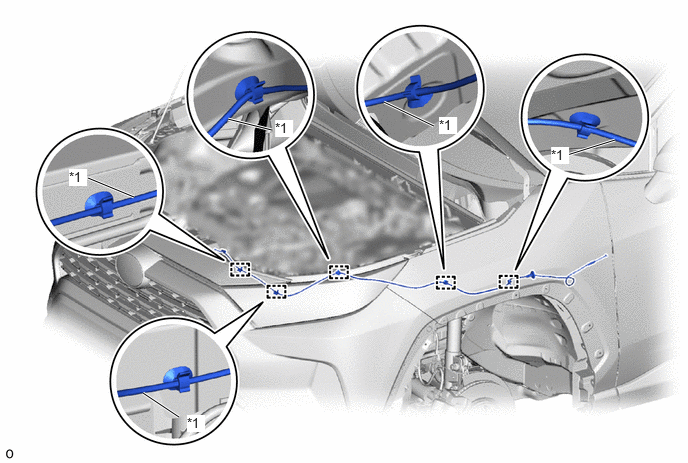

Attach the clamp and install the hood lock control cable assembly.

1.49,4.094 1.865,4.344 true 0.917,1.854 1.396,2.052 true 2.375,1.24 2.833,1.354 true 4,1.063 4.521,1.313 true 5.906,1.615 6.406,1.458 true 1.948,4.323 2.135,4.5 0.188,0.177 10 true *1 0.719,1.76 0.906,1.938 0.188,0.177 10 true *1 2.865,1.25 3.052,1.427 0.188,0.177 10 true *1 4.573,1.219 4.76,1.396 0.188,0.177 10 true *1 5.74,1.531 5.927,1.708 0.188,0.177 10 true *1

*1

Hood Lock Control Cable Assembly

-

-

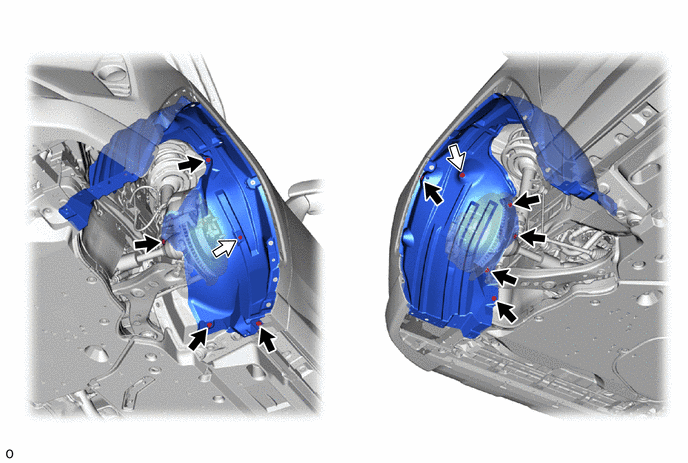

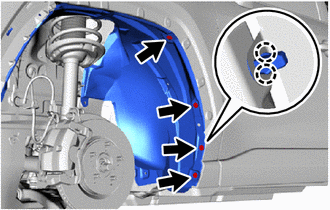

Attach the claw to install the front fender liner LH and 4 grommets.

Install the 9 clips and 2 screws.

0,0 0,0 false

Clip

Screw

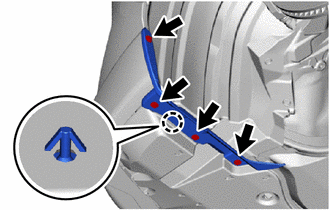

Attach the claw and install the front fender front splash shield LH.

Connect the hood lock control cable assembly to the hood lock control lever sub-assembly.

0,0 0,0 false

Install in this Direction

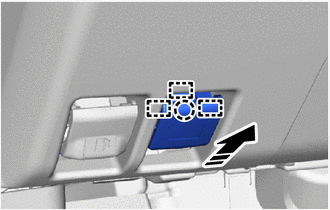

Attach the guide and claw to install the hood lock control lever sub-assembly in the direction indicated by the arrow shown in the illustration.

Attach the clamp and connect the hood lock control cable assembly.

NOTICE:

Do not bend the hood lock control cable assembly excessively.

1.552,1.313 1.719,1.51 0.167,0.198 10 true 1 2.458,1.031 2.677,1.229 0.219,0.198 10 true 2 1.948,1.615 2.115,1.813 0.167,0.198 10 true 3

	Bolt
	Connector

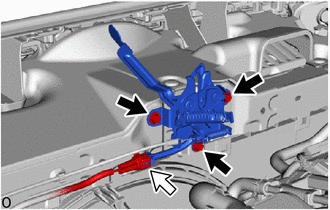

Install the hood lock assembly with the 3 bolts in the order shown in the illustration.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)
