MIRROR (EXT)  RELAY  ON-VEHICLE INSPECTION

2.313,1.771 2.313,1.438 true 2.563,1.771 2.563,1.438 true 2.813,1.771 2.813,1.438 true 2.719,0.979 3.219,0.979 true 2.719,0.563 3.219,0.563 true 2.281,1.771 2.438,1.969 0.156,0.198 10 false 2 2.531,1.76 2.688,1.958 0.156,0.198 10 false 4 2.781,1.76 2.938,1.958 0.156,0.198 10 false 1 3.25,0.896 3.406,1.094 0.156,0.198 10 false 5 3.25,0.479 3.406,0.677 0.156,0.198 10 false 3

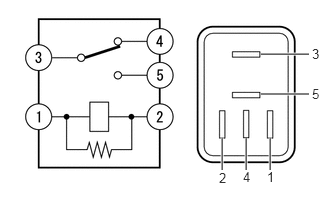

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3 - 4	Auxiliary battery voltage applied to terminals 1 and 2	10 kΩ or higher
3 - 4	Auxiliary battery voltage not applied between terminals	Below 1 Ω
3 - 5	Auxiliary battery voltage applied to terminals 1 and 2	Below 1 Ω
3 - 5	Auxiliary battery voltage not applied between terminals	10 kΩ or higher
4 - 5	Always	10 kΩ or higher

If the result is not as specified, replace the mirror control relay.
