MAINTENANCE  M20C-FKS OIL AND OIL FILTER  COMPONENTS

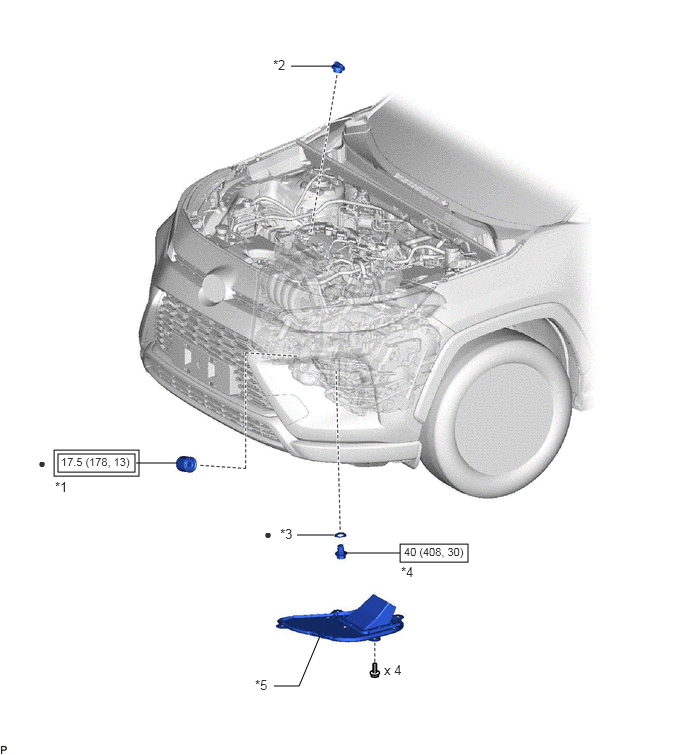

ILLUSTRATION

4.167,5.667 4.875,5.854 0.708,0.188 0.604,4.729 1.406,4.917 0.802,0.188 0.563,4.688 1.448,4.958 0.885,0.271 2.854,7.146 3.115,7.146 3.115,7.146 3.333,6.625 false 3.583,5.76 4.167,5.76 false 3.094,5.573 3.479,5.573 false 1.417,4.823 1.844,4.823 false 3.031,0.688 3.458,0.688 false 0.573,4.99 0.792,5.177 0.219,0.188 10 false *1 2.844,0.594 3.021,0.813 0.177,0.219 10 false *2 2.917,5.479 3.104,5.677 0.188,0.198 10 false *3 4.177,5.875 4.365,6.063 0.188,0.188 10 false *4 2.656,7.052 2.854,7.24 0.198,0.188 10 false *5 0.396,4.74 0.552,4.896 0.156,0.156 10 false ● 0.635,4.74 1.438,4.958 0.802,0.219 8 false 17.5 (178, 13) 4.208,5.677 4.906,5.865 0.698,0.188 8 false 40 (408, 30) 2.75,5.479 2.906,5.635 0.156,0.156 10 false ● 4,6.896 4.24,7.104 0.24,0.208 10 false x 4

*1	OIL FILTER SUB-ASSEMBLY	*2	OIL FILLER CAP SUB-ASSEMBLY
*3	GASKET	*4	OIL PAN DRAIN PLUG
*5	CENTER NO. 4 ENGINE UNDER COVER	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)		N*m (kgf*cm, ft.*lbf): Specified torque
●	Non-reusable part	-	-
