RM36D0EC _V1 General _083136 MAINTENANCE _0417235 M20C-FKS DRIVE BELT A

MAINTENANCE M20C-FKS DRIVE BELT REMOVAL

PROCEDURE

Hide Display 53736E 1.REMOVE FRONT FENDER APRON SEAL RH

Click hereEngine / Hybrid System>M20C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202004,202304,_51,_087037,_0417212,RM100000001MD0V_01_0005,202304,202405,_51,_087037,_0417212,RM1000000029X9A_01_0005,202405,999999,_51,_087037,_0417212,RM100000002JNRH_01_0005,

Hide Display 16361A 2.REMOVE V-RIBBED BELT

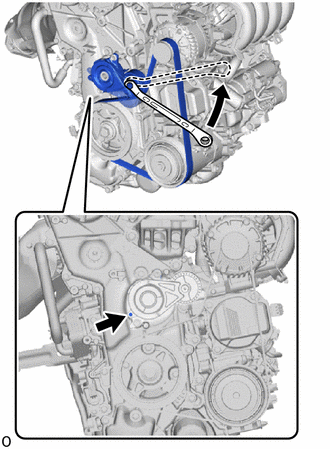

Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise.

Turn the V-ribbed belt tensioner assembly counterclockwise to align its holes, and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly.

Remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
