M20C-FKS ENGINE MECHANICAL  FRONT CRANKSHAFT OIL SEAL  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 11301C 1.INSTALL TIMING CHAIN COVER OIL SEAL

a.

Apply MP grease to the lip of a new timing chain cover oil seal.

NOTICE:
·

Keep the lip free from foreign matter.

·

Do not allow MP grease to contact the dust seal.




b.
A400430C01
0.719,0.313 0.927,0.313 0.927,0.313 1.302,0.49 false 2.115,1.573 2.427,1.771 0.313,0.198 10 false *a 0.417,0.24 0.875,0.438 0.458,0.198 10 false SST
*a 0 to 2 mm

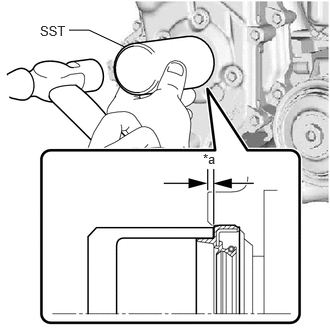

Using SST and a hammer, tap in the timing chain cover oil seal.

SST
09223-00010

Standard Depth:

0 to 2 mm (0 to 0.0787 in.) (From the edge of the No. 2 timing chain cover assembly)


NOTICE:

Do not tap in the timing chain cover oil seal at an angle.
