MAINTENANCE  REAR WIPER RUBBER  REMOVAL

0,0 0,0 false

Remove in this Direction

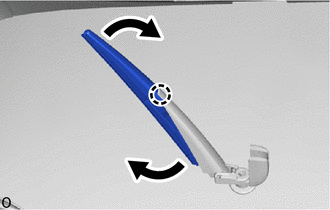

Detach the claw and open the rear wiper arm head cap as shown in the illustration.

Move the rear wiper blade assembly until a "click" sound can be heard and the claw detaches.

NOTICE:

Do not damage the claw.

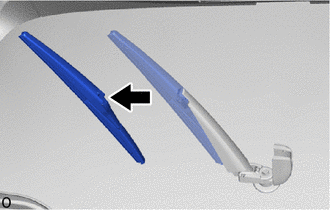

Remove the rear wiper blade assembly as shown in the illustration.

NOTICE:

Place a cloth, etc., between the back door glass and rear wiper arm to prevent damage to the back door glass.

0,0 0,0 false

	Push
	Pull Out
	Remove in this Direction

Pull out the rear wiper rubber together with the 2 rear wiper rubber backing plates from the rear end of the rear wiper blade stopper as shown in the illustration.

NOTICE:

Do not use excessive force when pulling out the rear wiper rubber in order to prevent deformation of the rear wiper rubber backing plate and damage to the rear wiper blade claw.

HINT:

Lightly pressing (gripping) the center of the rear wiper blade can make it easier to lift up and pull out the rear wiper rubber.

0,0 0,0 false

Remove in this Direction

Remove the 2 rear wiper rubber backing plates from the rear wiper rubber.
