RM36D0EC _V1 General _083136 MAINTENANCE _0406431 FRONT WIPER RUBBER A

MAINTENANCE  FRONT WIPER RUBBER  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 85214B 1.INSTALL WIPER RUBBER LH

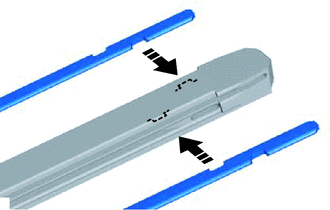

B407820C01
0,0 0,0 false
V113147

Install in this Direction


a.

Install the 2 wiper rubber backing plates.

NOTICE:
·

Align the groove of the wiper rubber backing plate with the edge of the wiper rubber LH.

·

Make sure that the wiper rubber backing plate is perpendicular to the glass.




b.

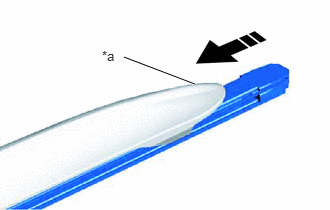

B407821C01
2.031,0.875 1.292,0.594 true 1.063,0.5 1.375,0.656 0.313,0.156 10 false *a
*a Arm Axis Side
V113147

Install in this Direction


Install the wiper rubber LH together with the 2 wiper rubber backing plates to the front wiper blade LH.

NOTICE:

Push the wiper blade into the groove of the wiper rubber to attach the wiper rubber completely.


HINT:

Install the wiper rubber LH so that the head part (large side) of the wiper rubber faces the arm axis side.



Hide 85222A 2.INSTALL FRONT WIPER BLADE LH

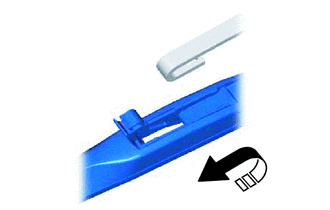

B407822C01
0,0 0,0 false
V113147

Install in this Direction


a.

Install the front wiper blade LH to the front wiper arm LH as shown in the illustration.


b.

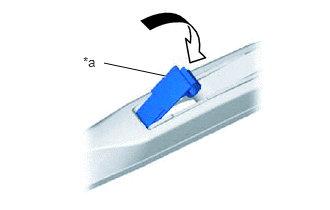

B407823C01
1.729,0.792 1.083,0.656 true 0.865,0.563 1.177,0.719 0.313,0.156 10 false *a
*a Holder
V100135

Push Down


Push down the holder of the front wiper blade LH as shown in the illustration.
