RM36D0EC _V1 General _083136 MAINTENANCE _0403710 TRANSMITTER BATTERY(w/o Smart Entry and Start System) A

MAINTENANCE  TRANSMITTER BATTERY(w/o Smart Entry and Start System)  REMOVAL


PROCEDURE

Hide 89745A 1.REMOVE TRANSMITTER BATTERY

NOTICE:

Take extra care when handling these precision electronic components.


a.

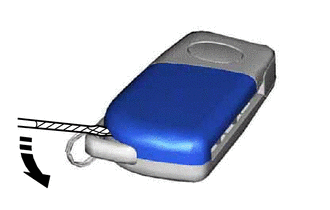

B405471C01
0,0 0,0 false
V100155

Protective Tape
V113147

Remove in this Direction


Insert a precision screwdriver into the gap, and turn the screwdriver to remove the transmitter housing cover.

NOTICE:

Do not twist the transmitter housing cover with excessive force.


HINT:

Tape the screwdriver tip before use.



b.

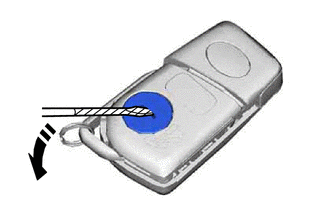

B405465C01
0,0 0,0 false
V100155

Protective Tape
V113147

Remove in this Direction


Insert a precision screwdriver into the door control transmitter packing and turn the screwdriver to remove the door control transmitter packing.

HINT:

Tape the screwdriver tip before use.



c.

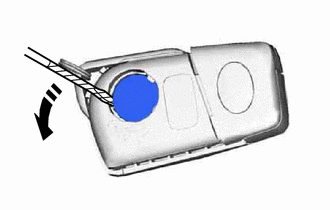

B405466C01
0,0 0,0 false
V100155

Protective Tape
V113147

Remove in this Direction


Insert a precision screwdriver into the gap and gently remove the transmitter battery (lithium battery (CR2032)).

NOTICE:
·

Do not push the terminals with your finger.

·

Do not forcibly pry up the transmitter battery (lithium battery (CR2032)) as the terminals may be damaged.

·

Do not touch the transmitter battery with wet hands. Moisture may cause rust.

·

Do not touch or move any components inside the transmitter. It may interfere with proper operation.

·

When replacing the transmitter battery (lithium battery (CR2032)), remove any static electricity from your body by touching the vehicle, etc., as the static electricity may damage the electrical key transmitter sub-assembly.



HINT:

Tape the screwdriver tip before use.
