Vehicle Exterior
_083093
DOOR / HATCH
_0403696
POWER BACK DOOR TOUCH SENSOR
A
DOOR / HATCH POWER BACK DOOR TOUCH SENSOR INSTALLATION
PROCEDURE
84280D
1.INSTALL POWER BACK DOOR SENSOR ASSEMBLY LH
a.

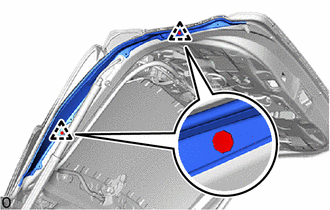

Attach the claw and install the 4 grommets.
b.
Install the power back door sensor assembly LH with the 2 clips.
c.
1.51,0.865 1.667,1.063
0.156,0.198
10
true
1
0.74,1.865 0.896,2.063
0.156,0.198
10
true
2
2.583,0.427 2.74,0.625
0.156,0.198
10
true
3
1.125,1.333 1.281,1.531
0.156,0.198
10
true
4
|
Screw |
|
Connector |

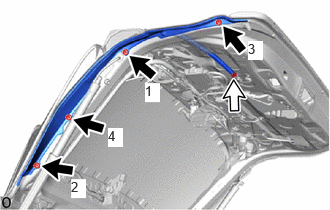

Install the 4 screws in the order shown in the illustration.
d.
Connect the connector.
84270G
2.INSTALL POWER BACK DOOR SENSOR ASSEMBLY RH
- HINT:
-
Use the same procedure described for the LH side.
67750
3.INSTALL BACK DOOR TRIM BOARD ASSEMBLY
67199
4.INSTALL BACK DOOR HANDLE COVER
- HINT:
-
Use the same procedure for the RH and LH sides.
67938A
5.INSTALL BACK DOOR SIDE GARNISH LH
67937B
6.INSTALL BACK DOOR SIDE GARNISH RH
- HINT:
-
Use the same procedure described for the LH side.
