RM36D0EC _59 Vehicle Exterior _083093 DOOR / HATCH _0403695 POWER BACK DOOR CLOSER SWITCH A

DOOR / HATCH POWER BACK DOOR CLOSER SWITCH INSTALLATION

PROCEDURE

Hide Display 84966A 1.INSTALL NO. 1 POWER BACK DOOR CONTROL SWITCH

0,0 0,0 false

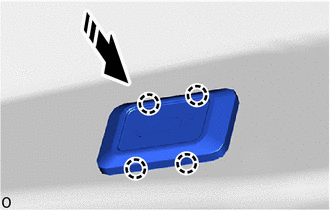

Install in this Direction

Attach the claw and install the No. 1 power back door control switch as shown in the illustration.

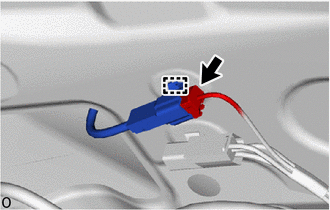

Attach the clamp and connect the connector.

Hide Display 67750 2.INSTALL BACK DOOR TRIM BOARD ASSEMBLY

Hide Display 67199 3.INSTALL BACK DOOR HANDLE COVER

HINT:: Use the same procedure for the RH and LH sides.; Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>REASSEMBLY201910,202004,_59,_083093,_0403691,RM100000001JUGM_01_0043,202004,202304,_59,_083093,_0403691,RM100000001MEBG_01_0043,202304,999999,_59,_083093,_0403691,RM1000000029SAY_01_0043,

Hide Display 67938A 4.INSTALL BACK DOOR SIDE GARNISH LH

Hide Display 67937B 5.INSTALL BACK DOOR SIDE GARNISH RH

Hide Display 67939B 6.INSTALL BACK DOOR CENTER GARNISH
