DOOR / HATCH  POWER BACK DOOR CLOSER SWITCH  INSPECTION

1.615,3.042 1.823,2.667 true 2.135,2.646 2.385,3.094 true 2.427,3.104 2.885,3.302 0.458,0.198 10 CLS 1.51,3.104 1.667,3.302 0.156,0.198 10 E 1.906,1.677 2.219,1.833 0.313,0.156 10 *a

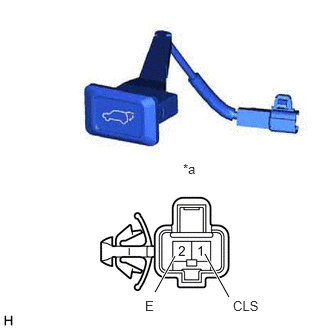

*a	Component without harness connected (No. 1 Power Back Door Control Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
1 (CLS) - 2 (E)	No. 1 power back door control switch not pushed	10 kΩ or higher
	No. 1 power back door control switch pushed	Below 1 Ω

If the result is not as specified, replace the No. 1 power back door control switch.
