DOOR / HATCH  BACK DOOR OPENER SWITCH  INSPECTION


PROCEDURE

Hide 84840G 1.INSPECT BACK DOOR OPENER SWITCH ASSEMBLY (w/ Smart Entry and Start System)

a.

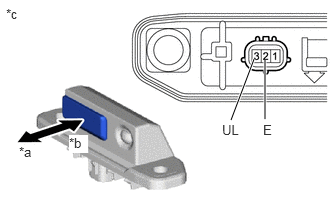

B528239C01
2.406,1.25 2.646,0.615 true 2.76,1.24 2.76,0.625 true 0.198,1.5 0.479,1.729 0.281,0.229 10 false *a 0.719,1.406 0.917,1.594 0.198,0.188 10 true *b 0.063,0.063 0.375,0.219 0.313,0.156 10 false *c 2.313,1.271 2.635,1.51 0.323,0.24 10 false UL 2.74,1.271 2.917,1.5 0.177,0.229 10 false E
*a Not Pushed (OFF)
*b Pushed (ON)
*c Component without harness connected
(Back Door Opener Switch Assembly)


Check the operation of the back door opener switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition
3 (UL) - 2 (E) Back door opener switch pushed (ON) Below 1 Ω
3 (UL) - 2 (E) Back door opener switch not pushed (OFF) 10 kΩ or higher


If the result is not as specified, replace the back door opener switch assembly.



b.

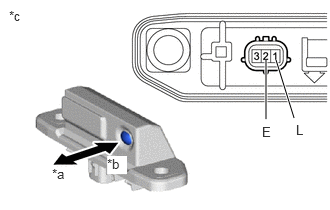

B528240C01
3.063,1.229 2.875,0.625 true 2.771,1.24 2.771,0.625 true 0.542,1.729 0.854,1.958 0.313,0.229 10 false *a 1.115,1.625 1.323,1.813 0.208,0.188 10 true *b 0.094,0.083 0.438,0.344 0.344,0.26 10 false *c 2.729,1.292 2.938,1.51 0.208,0.219 10 false E 3.083,1.271 3.271,1.479 0.188,0.208 10 false L
*a Not Pushed (OFF)
*b Pushed (ON)
*c Component without harness connected
(Back Door Opener Switch Assembly)


Check the operation of the back door lock switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition
1 (L) - 2 (E) Back door lock switch pushed (ON) Below 1 Ω
1 (L) - 2 (E) Back door lock switch not pushed (OFF) 10 kΩ or higher


If the result is not as specified, replace the back door opener switch assembly.



Hide 84840G 2.INSPECT BACK DOOR OPENER SWITCH ASSEMBLY (w/o Smart Entry and Start System)

a.
B528241C01
2.396,1.292 2.646,0.625 true 2.781,1.281 2.781,0.635 true 0.219,1.49 0.521,1.75 0.302,0.26 10 false *a 0.74,1.427 0.938,1.625 0.198,0.198 10 true *b 0.104,0.073 0.417,0.323 0.313,0.25 10 false *c 2.302,1.313 2.635,1.594 0.333,0.281 10 false UL 2.74,1.323 3.052,1.521 0.313,0.198 10 false E
*a Not Pushed (OFF)
*b Pushed (ON)
*c Component without harness connected
(Back Door Opener Switch Assembly)


Check the operation of the back door opener switch assembly.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition
3 (UL) - 2 (E) Back door opener switch pushed (ON) Below 1 Ω
3 (UL) - 2 (E) Back door opener switch not pushed (OFF) 10 kΩ or higher


If the result is not as specified, replace the back door opener switch assembly.
