RM36D0EC _59 Vehicle Exterior _083093 DOOR / HATCH _0403693 BACK DOOR OPENER SWITCH A

DOOR / HATCH BACK DOOR OPENER SWITCH REMOVAL

PROCEDURE

Hide Display 76801 1.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>BACK DOOR OUTSIDE GARNISH (for Upper Side)>REMOVAL201910,202004,_59,_083111,_0400768,RM100000001J9N5,202004,999999,_59,_083111,_0400768,RM100000001MENJ,

Hide Display 84840G 2.REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

a.

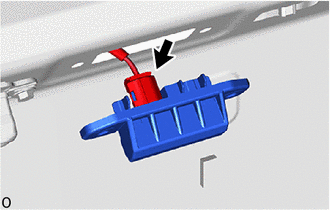

B522753

Disconnect the connector and remove the back door opener switch assembly.
