RM36D0EC _59 Vehicle Exterior _083093 DOOR / HATCH _0403685 HOOD A

DOOR / HATCH  HOOD  DISASSEMBLY


PROCEDURE

Hide 53341B 1.REMOVE HOOD INSULATOR

a.

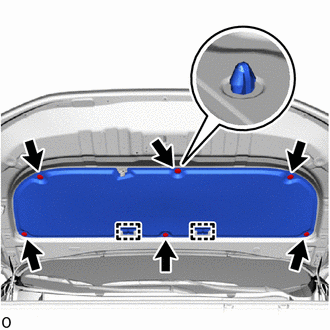

B521968

Using a clip remover, remove the 6 clips.


b.

Detach the guide and remove the hood insulator.


Hide 85035 2.REMOVE WASHER NOZZLE SUB-ASSEMBLY

HINT:

Use the same procedure for the RH and LH sides.

Click hereVehicle Exterior>WIPER / WASHER>WASHER NOZZLE>REMOVAL


Hide 85370 3.DISCONNECT WINDSHIELD WASHER HOSE ASSEMBLY

a.

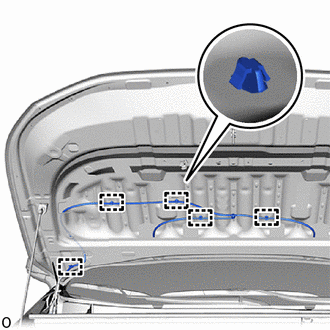

B521969

Detach the clamp and disconnect the windshield washer hose assembly.


Hide 53452 4.REMOVE HOOD STAY HOLDER

a.

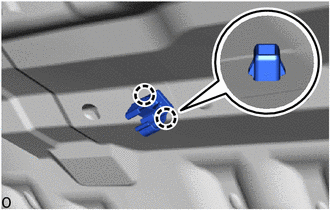

B521970

Using a thin-bladed screwdriver, detach the claw and remove the hood stay holder.

HINT:

Tape the thin-bladed screwdriver tip before use.
