RM36D0EC _V1 General _083136 MAINTENANCE _0403572 AIR CONDITIONING FILTER A

MAINTENANCE  AIR CONDITIONING FILTER  INSTALLATION


PROCEDURE

Hide 87139C 1.INSTALL CLEAN AIR FILTER

a.

Attach the guide on the cutout side of the air filter case and then attach the guide as shown in the illustration to install the clean air filter.

NOTICE:
·

Do not apply excessive force to the filter medium, as doing so may damage it.

·

Make sure that the "UP" marks are facing the correct direction before installing the clean air filter.

·

Make sure that there is no clearance between the clean air filter and air filter case and that the clean air filter is not deformed.



E406621C01
0.719,2.51 0.719,2.177 true 2.021,4.427 2.021,4.094 2.021,4.094 2.188,4.094 true 0.635,2.5 0.948,2.698 0.313,0.198 10 false *a 1.938,4.438 2.25,4.635 0.313,0.198 10 false *b
*a Cutout *b Rib
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)



Hide 88548B 2.INSTALL AIR FILTER CASE

a.

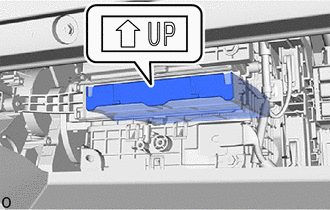

E406622

Install the air filter case.

NOTICE:

Insert it with the arrow of the UP mark facing upward.



Hide 88899M 3.INSTALL AIR FILTER COVER PLATE

a.

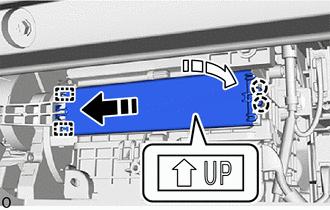

E406624C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Insert the guide in the direction indicated by the arrow shown in the illustration.


b.

Rotate in the direction indicated by the arrow shown in the illustration, attach the claw and install the air filter cover plate in the order shown in the illustration.

NOTICE:
·

Insert it with the arrow of the UP mark facing upward.

·

Insert the claw until a "click" sound is heard.
