PARKING BRAKE  FORCED RELEASE(for Gasoline Model)  OPERATION METHOD


CAUTION / NOTICE / HINT

CAUTION:
C400753

If work is performed without first securing the vehicle, the vehicle may start moving and cause a serious accident or other disaster. Therefore, be sure to use wheel chocks to secure the vehicle before performing work.


PROCEDURE

Hide 67913B 3.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:

Use the same procedure as for the LH side.


Hide 62111C 5.REMOVE COWL SIDE TRIM BOARD RH

HINT:

Use the same procedure as for the LH side.


Hide 6. PARKING BRAKE FORCED RELEASE

CAUTION:

Work on a level surface to ensure safety.


NOTICE:
·

To release the parking brake, follow the procedure for when using SST.

·

If the parking brake cannot be released, follow the procedure for when not using SST.

·

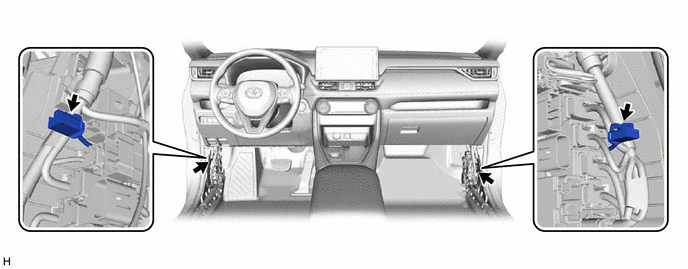

When moving the vehicle after releasing the parking brake, install all parts and do not connect the 2 connectors shown in the illustration.

C400755

·

If the ignition switch ON or the engine is started with the 2 connectors disconnected, a DTC may be stored. Clear any DTCs after performing work.

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE SYSTEM (for Gasoline Model)>DTC CHECK / CLEAR



a.

When using SST:

i.

Park the vehicle on a level surface and move the shift lever to P.


ii.

Turn the ignition switch off and use wheel chocks to secure the vehicle.


iii.

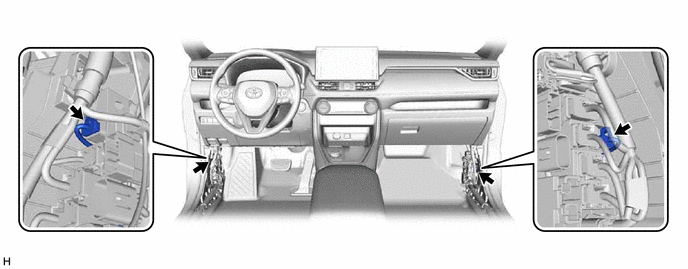

Disconnect the 2 connectors shown in the illustration.

C400757


iv.

Connect SST (09756-48020) to SST (09756-48070).

SST
09756-48020  09756-48070

C400758C01

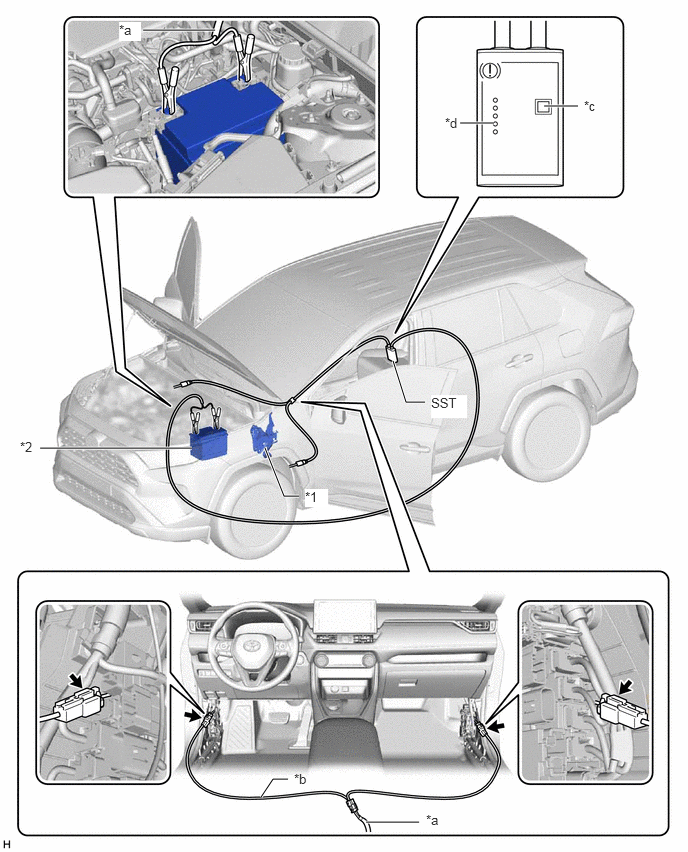

1.49,0.313 2.24,0.313 true 5.667,1.104 6.021,1.104 true 2.76,4.667 2.958,5.167 2.958,5.167 3.115,5.167 true 0.417,4.667 2,4.667 true 4.094,3.76 4.229,4.188 4.229,4.188 4.427,4.188 true 2.719,8.302 2.844,8.115 2.844,8.115 3,8.115 true 3.813,8.563 4.365,8.563 true 4.792,1.281 5.146,1.281 true 3.177,5.094 3.417,5.281 0.24,0.188 10 true *1 6.083,1.021 6.396,1.219 0.313,0.198 10 false *c 4.635,1.198 4.948,1.396 0.313,0.198 10 false *d 1.24,0.229 1.469,0.427 0.229,0.198 10 true *a 4.49,4.115 4.865,4.354 0.375,0.24 10 true SST 0.208,4.573 0.521,4.771 0.313,0.198 10 false *2 4.438,8.458 4.75,8.656 0.313,0.198 10 false *a 3.063,8.031 3.375,8.229 0.313,0.198 10 false *b
*1 Brake Pedal *2 Battery
*a SST (09756-48020) *b SST (09756-48070)
*c Release Button *d Finished Light
V100135

Connector - -



v.

Connect SST (09756-48070) to the 2 connectors inside of the vehicle.


vi.

Connect SST (09756-48020) to the battery from the outside of the vehicle.


vii.

Push the release button on SST (09756-48020) with the brake pedal depressed.

CAUTION:

The vehicle may suddenly move when the parking brake is released. Make sure to perform the release operation with the brake pedal depressed.


HINT:
·

Confirm that the parking brake is operating by listening for operation sounds.

·

If no operation sounds are heard, push the release button on SST (09756-48020) with the brake pedal depressed.

·

The parking brake may not release if the battery voltage is too low. In this case, perform the release operation again using a fully charged or new battery.




viii.

When the finished light of SST (09756-48020) illuminates, release the brake pedal.


ix.

Move the vehicle forward and rearward to check that the parking brake is released.

CAUTION:

Be careful when performing this operation. The vehicle may suddenly move.


NOTICE:
·

When moving the vehicle after releasing the parking brake, check that the 2 connectors are disconnected.

·

The brake warning light (yellow) will illuminate when the vehicle is moved after releasing the parking brake.





b.

When not using SST:

NOTICE:

Perform the following procedure only when the parking brake cannot be released using SST.


HINT:
·

Use the same procedure for the RH and LH side.

·

The following procedure is for the LH side.



i.

Park the vehicle on a level surface and move the shift lever to P.


ii.

Turn the ignition switch off and use wheel chocks to secure the vehicle.


iii.

Check that the 2 connectors shown in the illustration have been disconnected.

C400757



v.

Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE ACTUATOR>REMOVAL


vi.

Remove the parking brake actuator assembly from the rear disc brake cylinder assembly.

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE ACTUATOR>REMOVAL


vii.

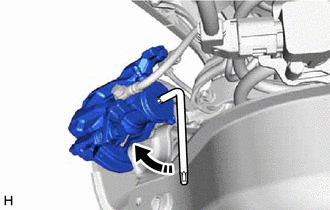

Insert an L-shaped T45 "TORX" wrench into the rear disc brake cylinder assembly.


viii.
C400760

Turn the L-shaped T45 "TORX" wrench 2 full rotations clockwise to release the parking brake lock.

NOTICE:
·

When moving the vehicle after releasing the parking brake, install all parts and do not connect the 2 connectors shown in the illustration.

C400755

·

The brake warning light (yellow) will illuminate when the vehicle is moved after releasing the parking brake.





Hide 67913B 8.INSTALL FRONT DOOR SCUFF PLATE RH

HINT:

Use the same procedure as for the LH side.


Hide 62111C 10.INSTALL COWL SIDE TRIM BOARD RH

HINT:

Use the same procedure as for the LH side.
