BRAKE SYSTEM (OTHER)  BRAKE FLUID(for Gasoline Model)  COMPONENTS

ILLUSTRATION

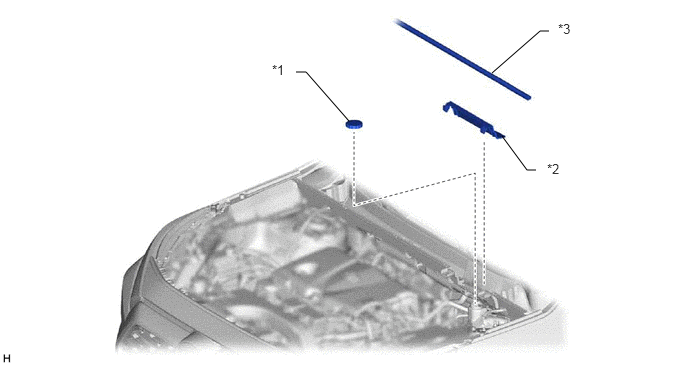

3.083,0.75 3.188,0.75 3.188,0.75 3.635,1.26 false 5.125,0.76 5.625,0.323 5.625,0.323 5.719,0.323 false 5.229,1.417 5.49,1.771 5.49,1.771 5.583,1.771 false 5.698,1.677 6.021,1.906 0.323,0.229 10 false *2 2.833,0.646 3.146,0.802 0.313,0.156 10 false *1 5.813,0.219 6.135,0.448 0.323,0.229 10 false *3

*1	BRAKE MASTER CYLINDER RESERVOIR FILLER CAP	*2	CENTER COWL TOP VENTILATOR LOUVER
*3	HOOD TO COWL TOP SEAL	-	-

ILLUSTRATION

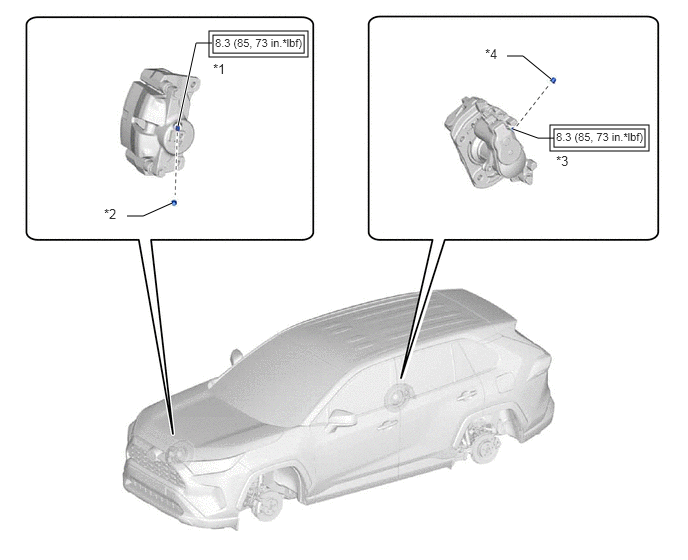

2.219,0.365 3.167,0.552 0.948,0.188 2.177,0.323 3.208,0.594 1.031,0.271 5.771,1.344 6.719,1.531 0.948,0.188 5.729,1.302 6.76,1.573 1.031,0.271 1.323,2.25 1.49,2.25 1.49,2.25 1.792,2.115 true 5.281,0.583 5.448,0.583 5.448,0.583 5.74,0.823 true 1.854,1.313 2.042,0.448 2.042,0.448 2.208,0.448 true 5.344,1.344 5.604,1.438 5.604,1.438 5.771,1.438 true 2.219,0.635 2.531,0.896 0.313,0.26 10 false *1 1.083,2.146 1.396,2.302 0.313,0.156 10 false *2 5.792,1.594 6.104,1.75 0.313,0.156 10 false *3 5.052,0.479 5.385,0.771 0.333,0.292 10 false *4 2.24,0.375 3.365,0.792 1.125,0.417 8 false 8.3 (85, 73 in.*lbf) 5.792,1.354 6.917,1.771 1.125,0.417 8 false 8.3 (85, 73 in.*lbf)

*1	FRONT DISC BRAKE BLEEDER PLUG	*2	FRONT DISC BRAKE BLEEDER PLUG CAP
*3	REAR DISC BRAKE BLEEDER PLUG	*4	REAR DISC BRAKE BLEEDER PLUG CAP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-
