BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS VSC OFF SWITCH REMOVAL

PROCEDURE

Hide Display 1.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201910,202304,_58,_083106,_0400608,RM100000001J8OP,202304,999999,_58,_083106,_0400608,RM1000000029Q1K,

Hide Display 55900 2.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL201910,999999,_58,_083104,_0403077,RM100000001JNHR_01_0001,

Hide Display 55434B 3.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0007,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0007,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0007,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0007,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0007,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0007,

Hide Display 84988L 4.REMOVE VSC OFF SWITCH

a.

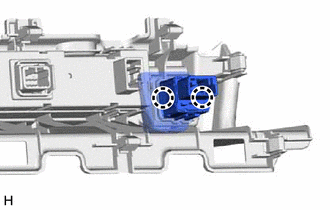

C409083

Detach the 2 claws and remove the VSC OFF switch from the lower center instrument panel finish panel.
